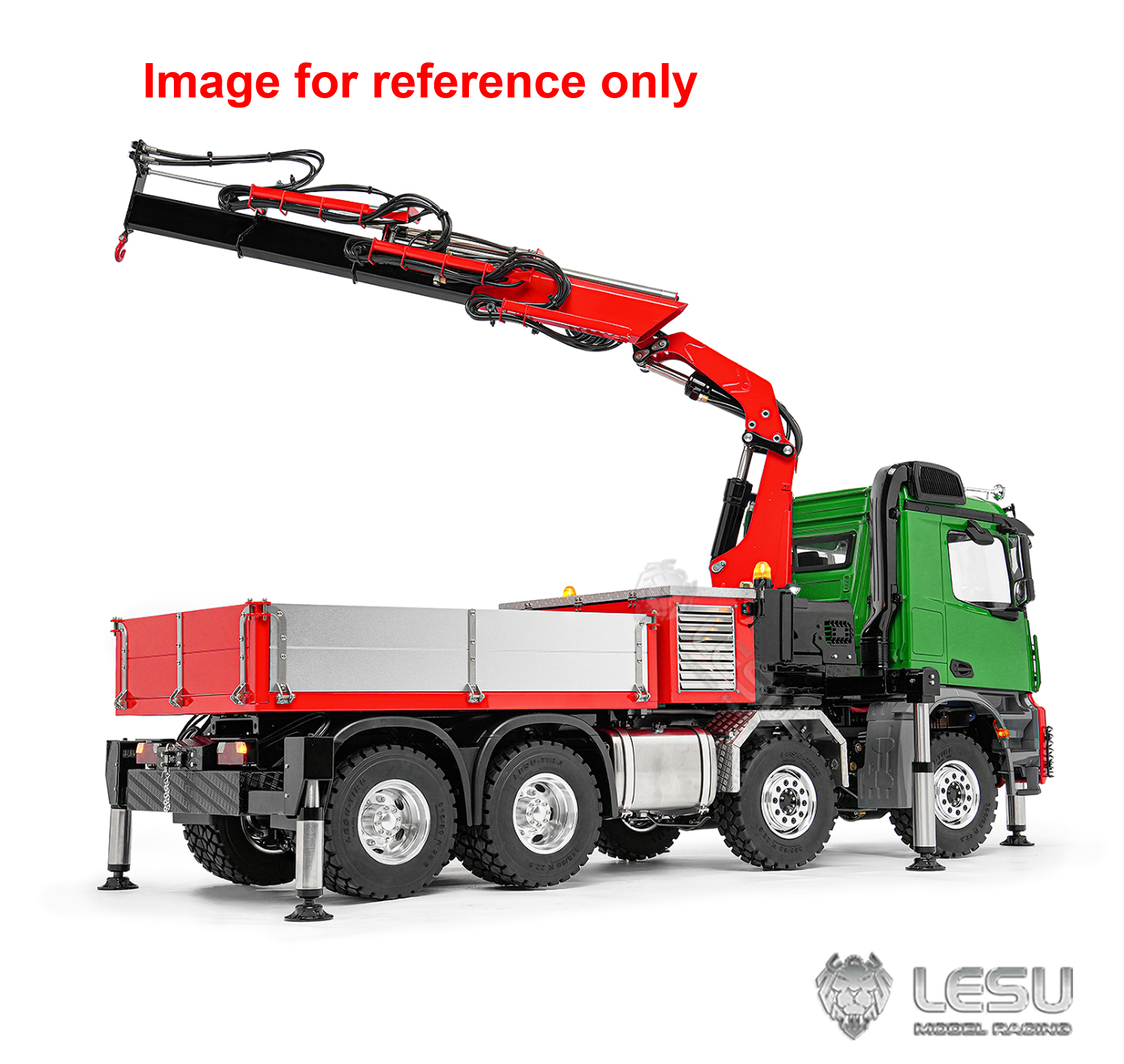

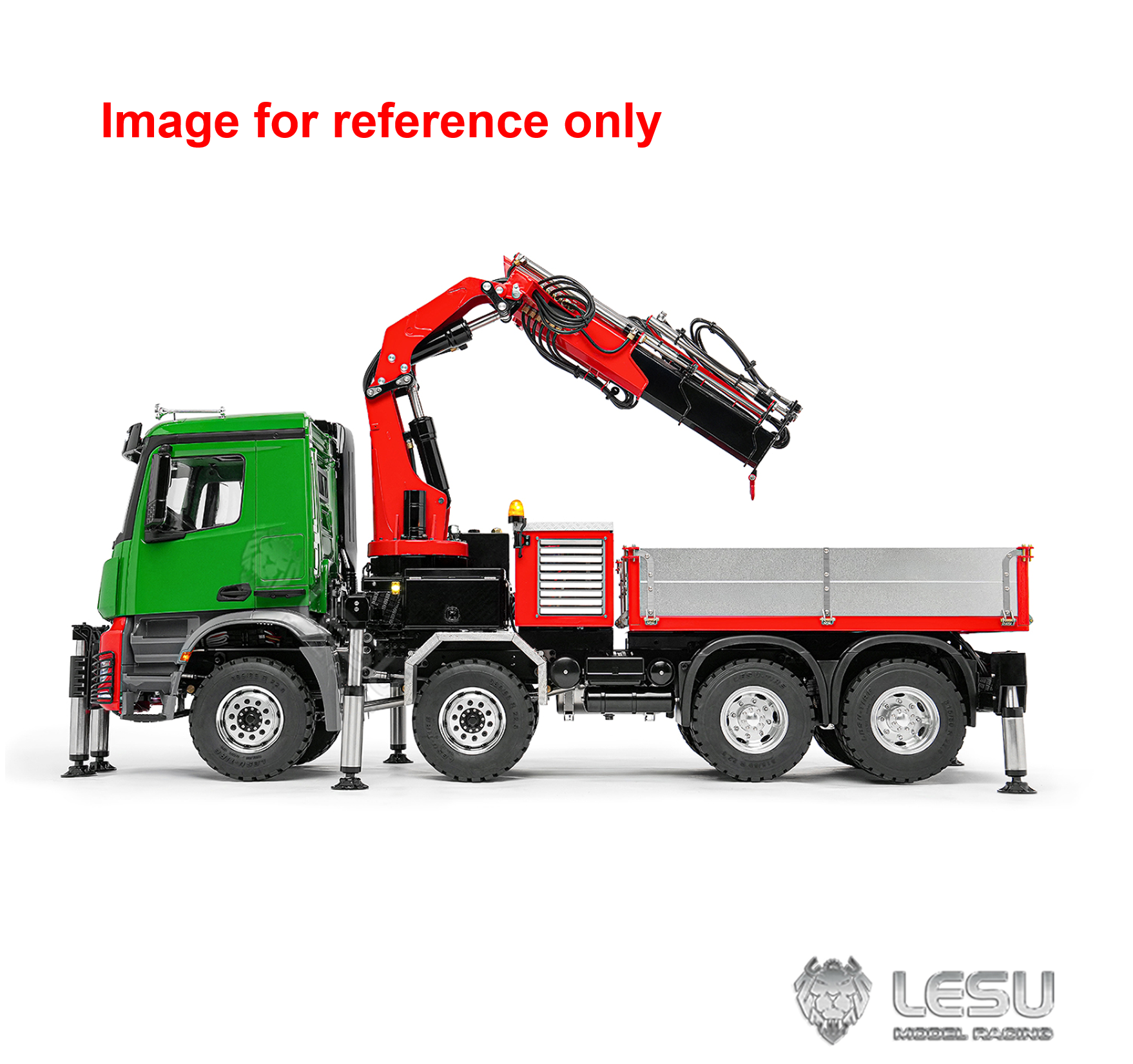

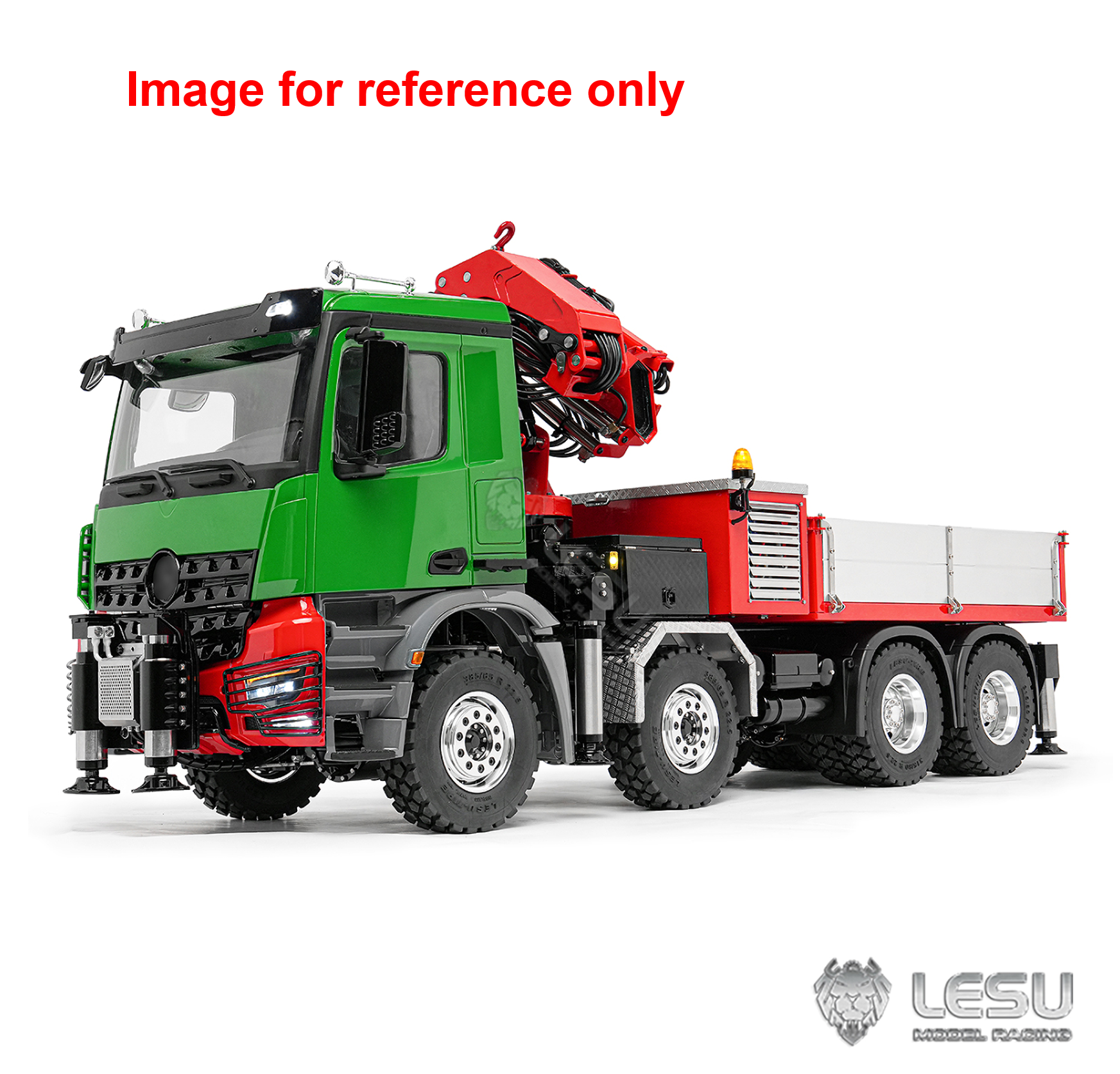

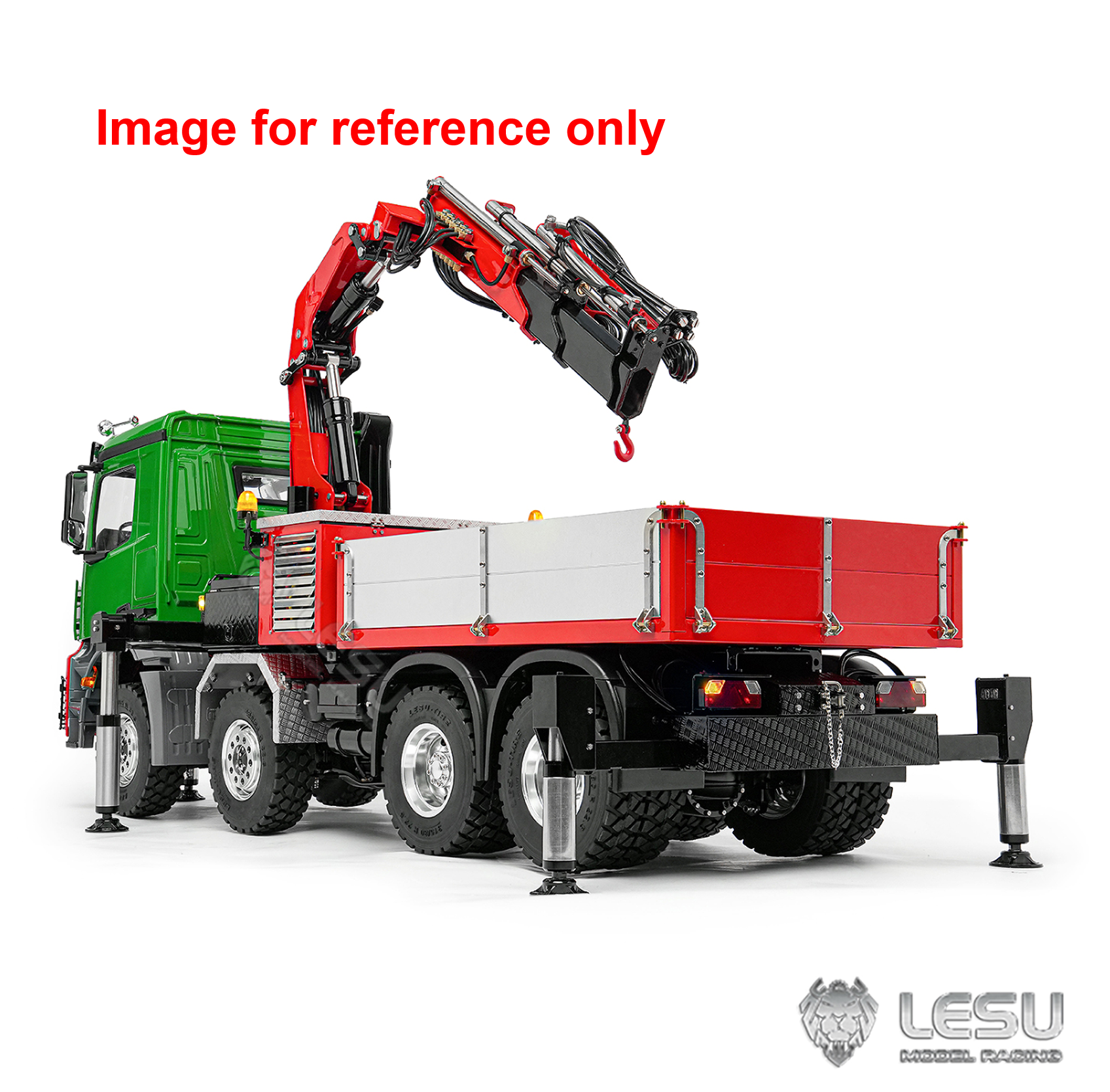

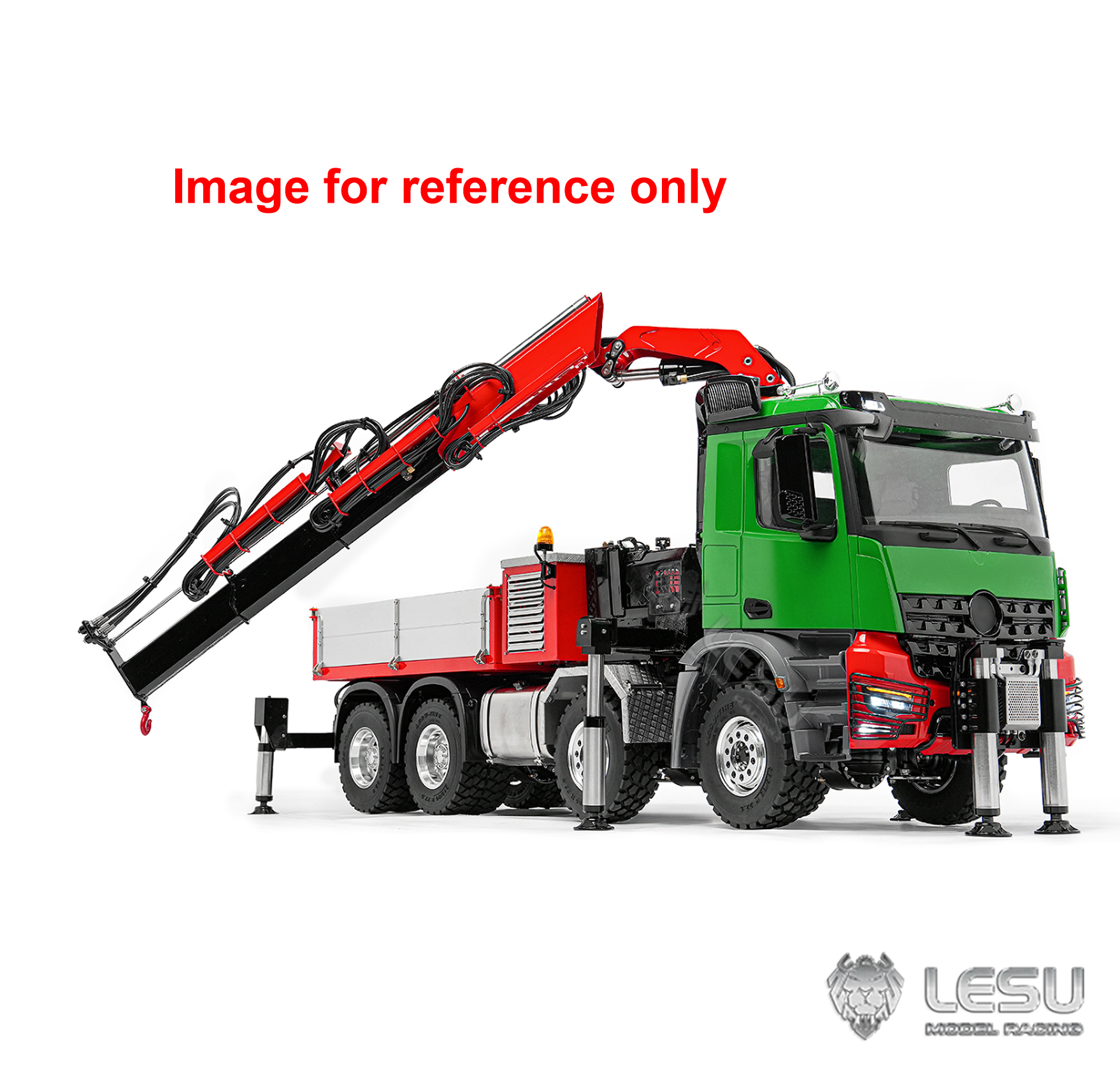

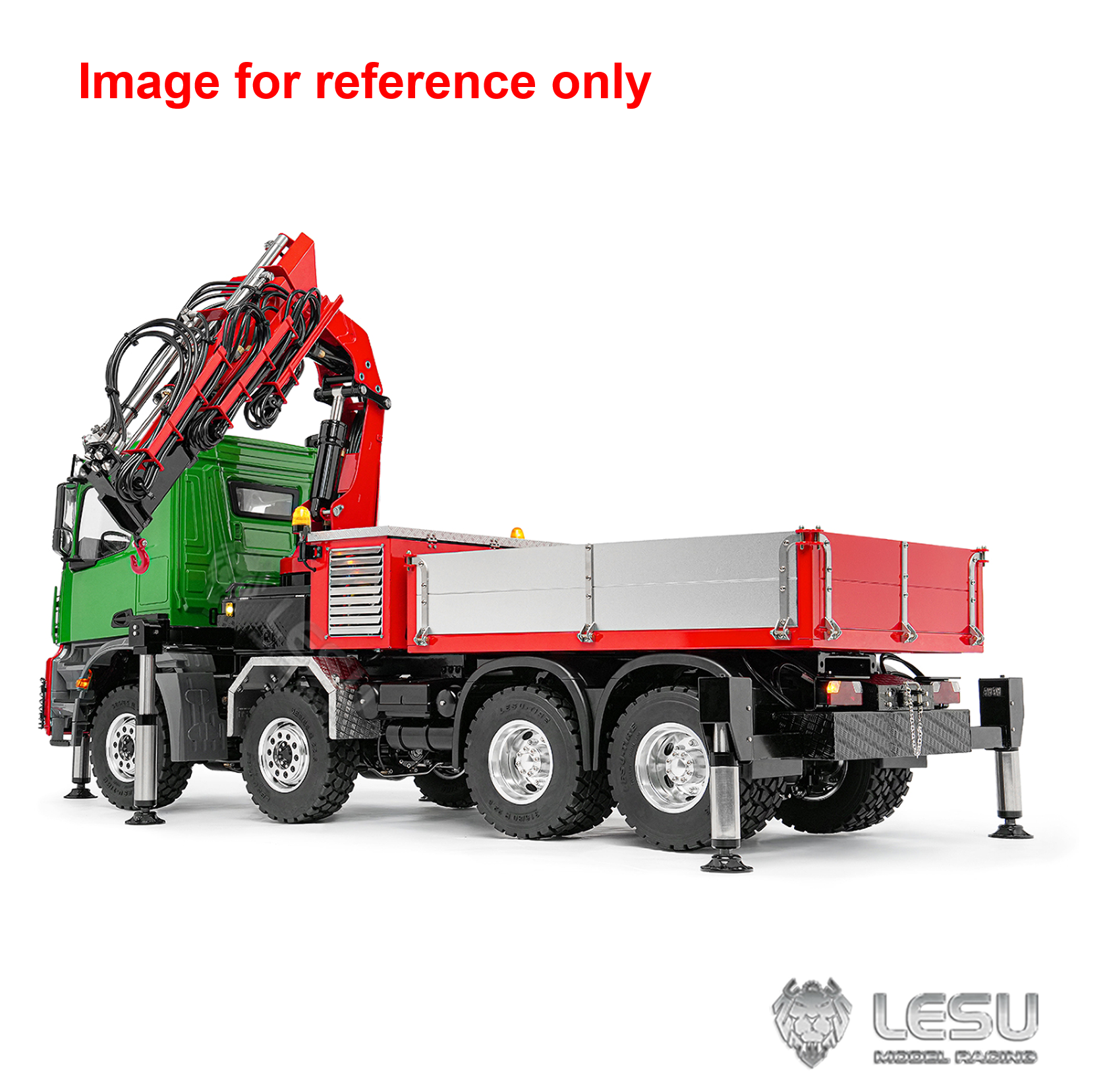

LESU 3363 1/14 Metal RC Hydraulic Crane Truck 8X8 Axle Diff Lock 3Speed Remote Control Lorry 7CH Valve 6 Outriggers Light Sound

#LESU 3363 1/14 Metal RC Hydraulic Crane Truck 8X8 Axle Diff Lock 3Speed Remote Control Lorry 7CH Valve 6 Outriggers Light Sound

#Specification:
Brand: LESU
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: Stainless Steel, Aluminium Alloy, Plastic
Gearbox: Full Metal 3Speed Gearbox, 1/20.9, 1/10.5, 1/5.2
Axles: Full Metal 8x8 Axles comes with Differential Locks
Drive Motor & ESC: 540 27T Brush ESC & 320A ESC
Overall Vehicle Length (mm): 689
Wheelbase (mm): 155/194.5/105
Front Track Width (mm): 157.4
Rear Track Width (mm): 139
Minimum Ground Clearance (mm): 17
Overall Tire Width (Outer Edge, mm): 187.3
Length from Rear Axle to Truck Tail (mm): 95.5
Hydraulic Valve: 7CH
Max Pressure of Hydraulic System (MPa): 4
Quantity of Hydraulic Pump: 1
Max Travel Speed: 163 m/min
Quantity of Hydraulic Cylinders: 15
Suspension: Leaf Spring Suspension
Recommended Radio Transmitter: 18CH ( Not Included)
Recommended Battery: Two 3S Lipo Batteries, Size: L78xW40xH22MM, L137xW44xH28MM ( Not Included)
ID: LS-Z0080-PNP-Y

#The Package Includes:
1/14 8X8 3363 Hydraulic Crane Truck
Motor
Servo
ESC
Light System
Sound System
Hydraulic System(7CH Reversing Valve)

#The Package Does Not Include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil

#Features
1. 95% components of the truck are metal built for solid structure, highly restoring real machinery texture.

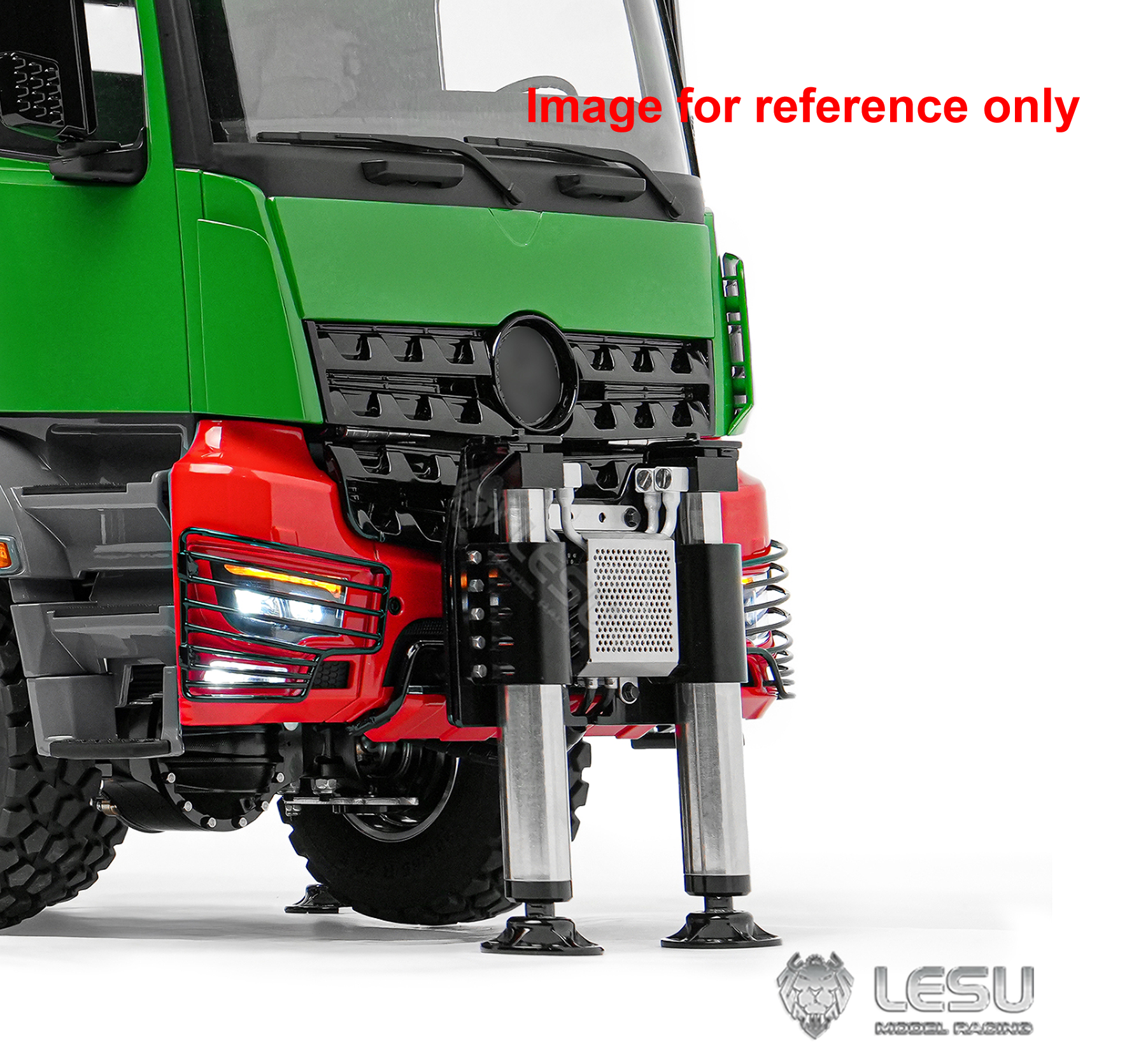

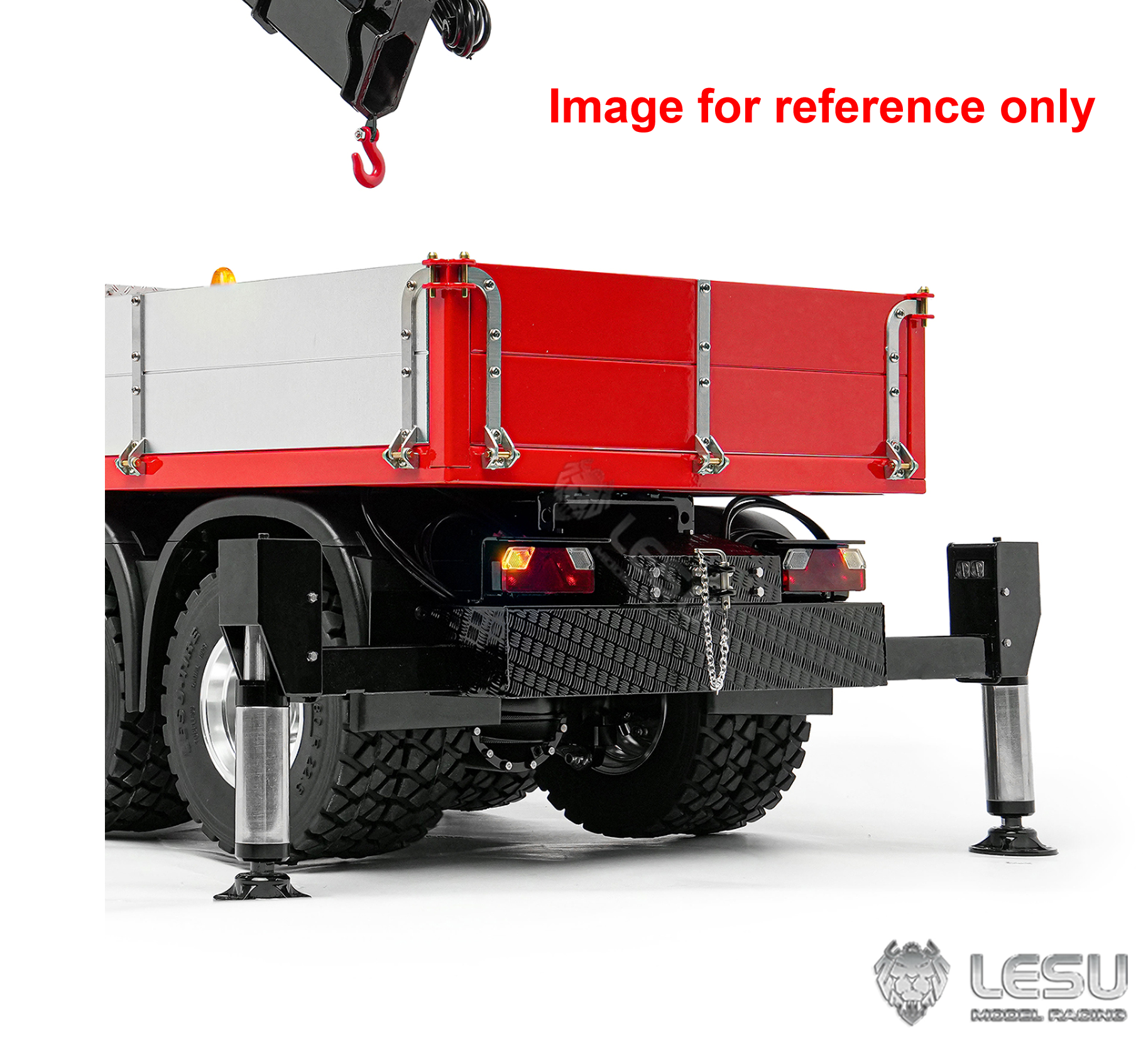

2. Hydraulic system adopts integrated power station with neat compact oil circuit layout. The crane uses 7CH metal hydraulic valve to control crane boom and outriggers separately. Equipped with 6 front, middle and rear hydraulic outriggers for wider support area, keeping the truck stable without tilting during heavy lifting.
3. Equipped with 540 brushed motor and 3-speed gearbox (reduction ratios: 1/20.9, 1/10.5, 1/5.2). Three speed modes fit various working scenarios.
4. Dual front axle 4-wheel steering shortens turning radius for flexible movement in narrow spaces. The metal cargo box is durable with four independently openable side gates.
5. All axles come with differential locks for excellent off-road performance on muddy and gravel roads. Body-on-frame chassis with leaf spring suspension maintains rigidity under heavy loads, improving driving simulation and durability.
6. 18 LED beads cover headlight, turn signal, taillight and work light, plus 2 independent warning lights to indicate working status. High-simulation sound system restores authentic vehicle light and sound effects.
