Please note: Only the Green & Grey color option are currently in stock.

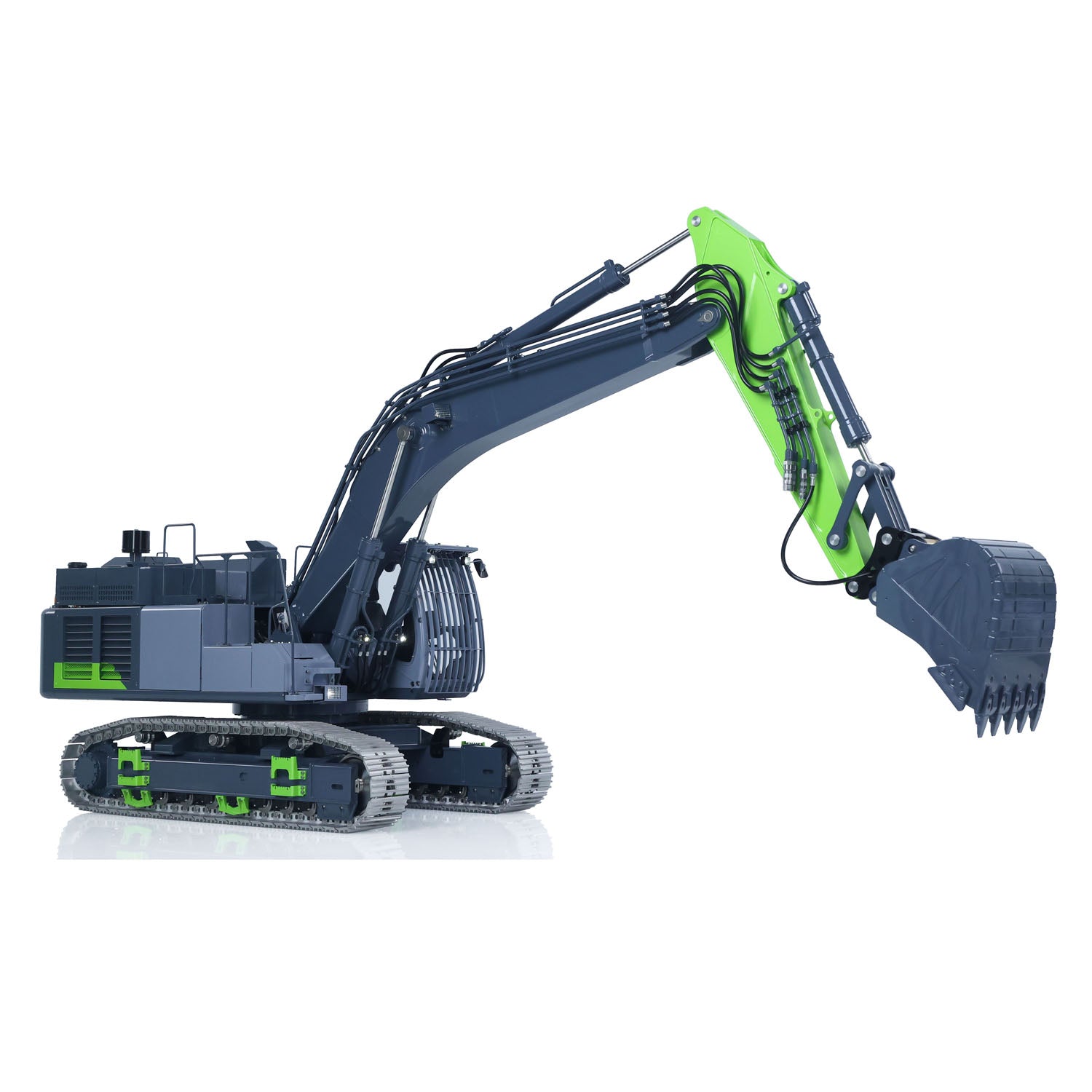

#IN Stock LESU Aoue ZX490 1/14 Metal Hydraulic RC Excavator Heavy Digger Model FlySky PL18EV Lite Radio Controller Smoke
#Specification:
Manufacturer: LESU
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: 90% Metal, Plastic
Size: 859 x 263 x 257 mm
Reversing Valve: 6CH
Product Weight: 18.4KG
Drive Motor: Brushless
Pump Motor: Brushless
Rotary Motor: Brushed
ID: LS-BA-B0026-RTR-UP1-PENQI-ZLGNGY

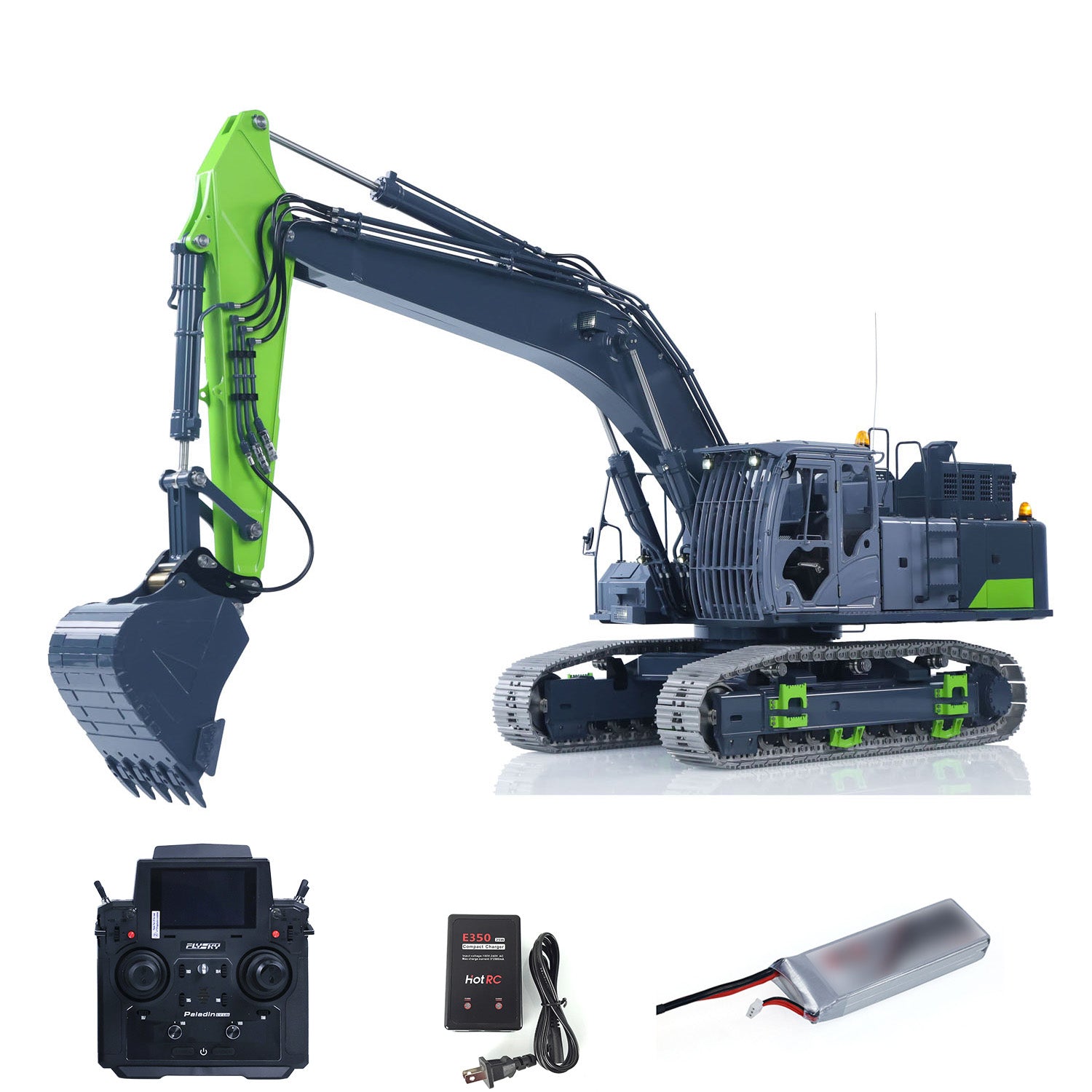

#The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System
Upgraded Sound System
Upgraded Smoke Unit
Metal Hydraulic Quick Release Coupler
FlySky PL18EV Lite Remote Controller and Receiver
Battery
Charger
#The Package Does Not Include:
Hydraulic Oil
Smoke Oil
#Parameters:
Ground Clearance (Top of Cab): 256.9 mm
Maximum Dumping Height: 571 mm
Ground Clearance (Bottom of Upper Structure): 100 mm
Maximum Digging Depth: 525.3 mm
Track Length: 392 mm
Maximum Digging Reach: 840.9 mm
Wheelbase: 320 mm
Maximum Ground-Level Digging Reach: 805.7 mm
Number of Hydraulic Pumps: 1
Track Gauge: 187 mm
Minimum Tail Swing Radius: 277.8 mm
Track Width: 43 mm
Maximum Digging Height: 771.5 mm
Overall Machine Width: 263 mm
Swing Speed: 12 rpm
Travel Drive Sprocket Speed: 25 rpm
Swing Drive Reduction Ratio: 1:208
Travel Drive Reduction Ratio: 1:520
Swing Motor Speed: 2,500 rpm
Travel Motor Speed: 13,200 rpm
Maximum Hydraulic System Pressure: 4 MPa
Hydraulic Directional Control Valve Sections: 6
Rated Hydraulic System Pressure: 3 MPa
X-Frame Ground Clearance: 54.4 mm
Traveling motor speed: 13200r/min
Number of reversing valve channels: 6
Height from the bottom of X rack to ground: 54.4mm
#Features:
1. Precision Hydraulic Performance
Equipped with a high-performance hydraulic system that delivers smooth, coordinated, and highly proportional arm movements. The realistic hydraulic operation provides precise control for digging, lifting, and grading, creating an authentic construction equipment experience.
2. Premium CNC Metal Construction

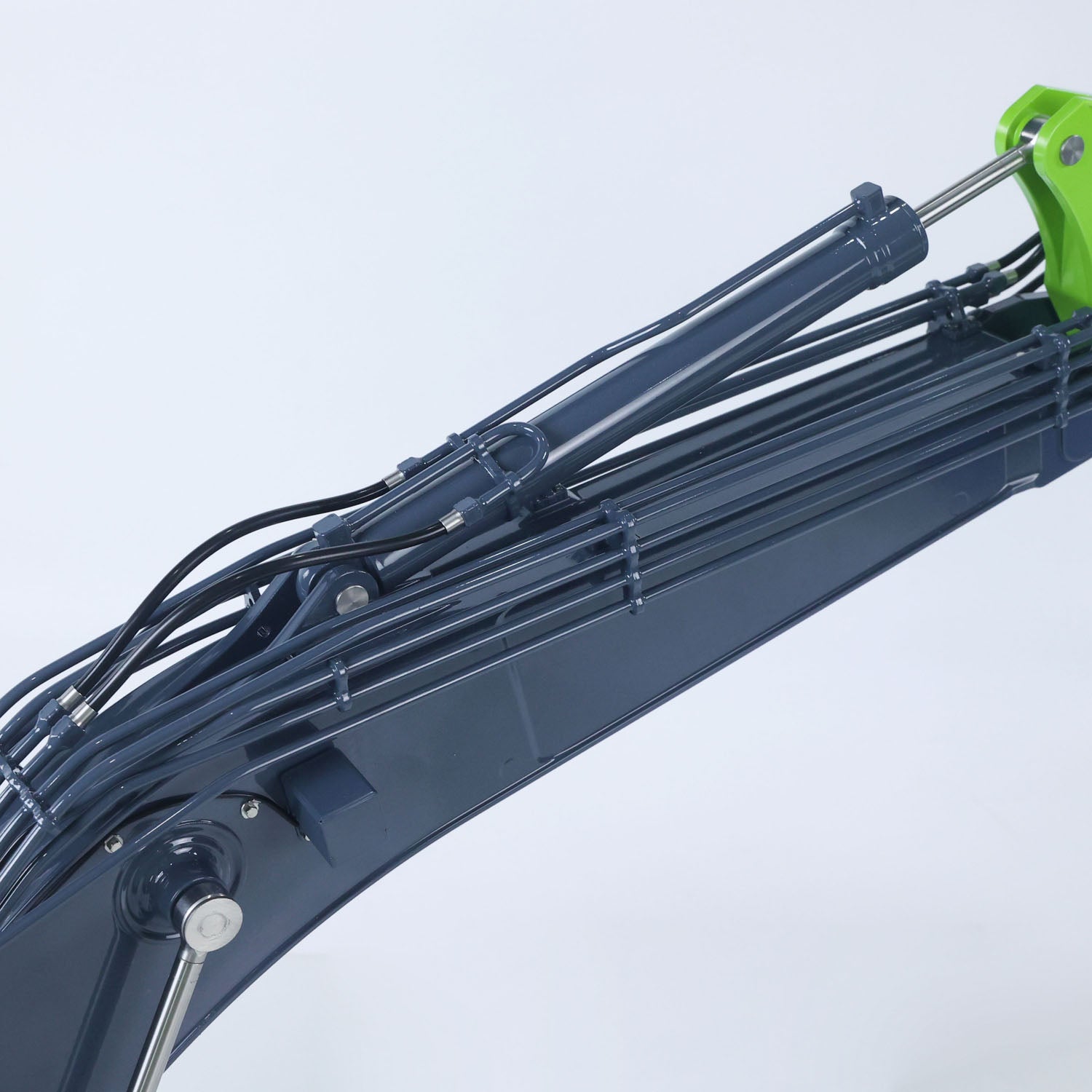

Designed with a modular structure for easy assembly and maintenance. Features extensive CNC-machined metal components, including a solid aluminum alloy boom, arm, and rear counterweight. With approximately 90% metal construction and 80% brass hydraulic tubing, this excavator offers outstanding durability and a highly realistic industrial appearance.
3. Advanced Hydraulic System & Quick Attachment Changes

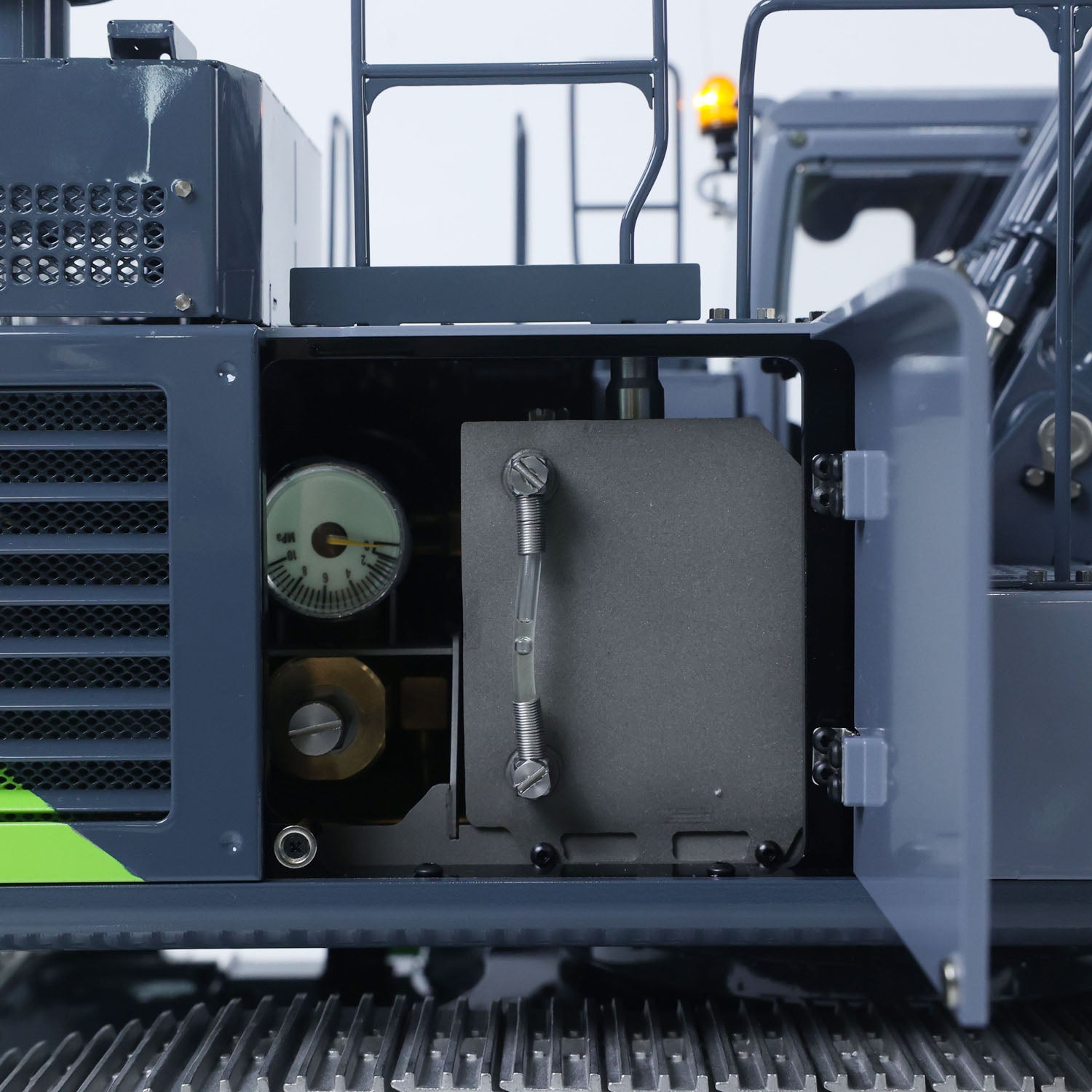

Equipped with a 6-way hydraulic control valve, 3 hydraulic cylinders, and a reserved 3-way valve interface for future functional expansion. The independently designed hydraulic power station integrates the oil pump, brushless motor, radiator, oil tank, pressure gauge, filter, relief valve, and control valves into a clean, compact, and easy-to-maintain layout. Quick-release couplers and quick connectors allow fast, convenient attachment changes, improving efficiency and versatility during operation.
4. Immersive Scale Details & Realistic Effects

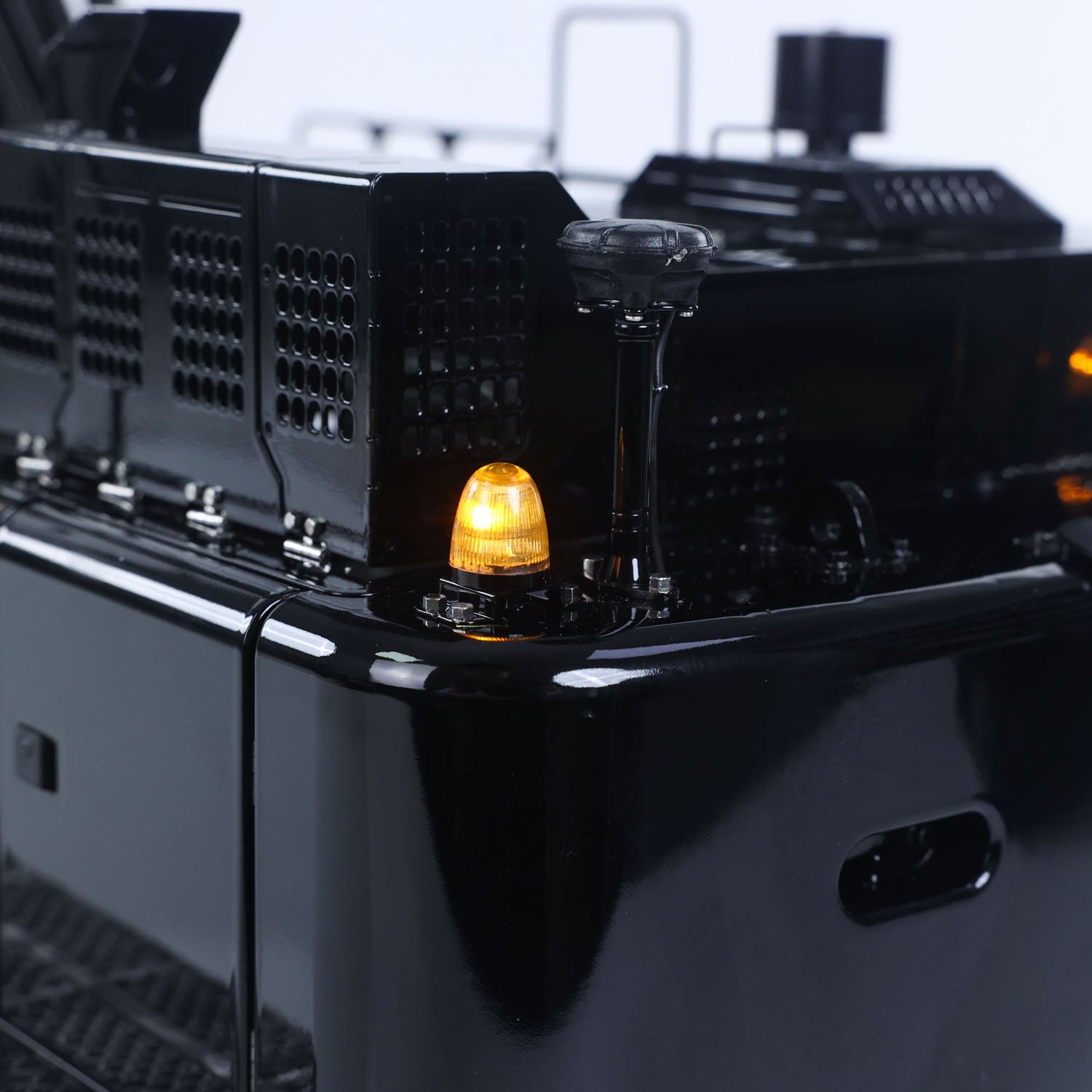

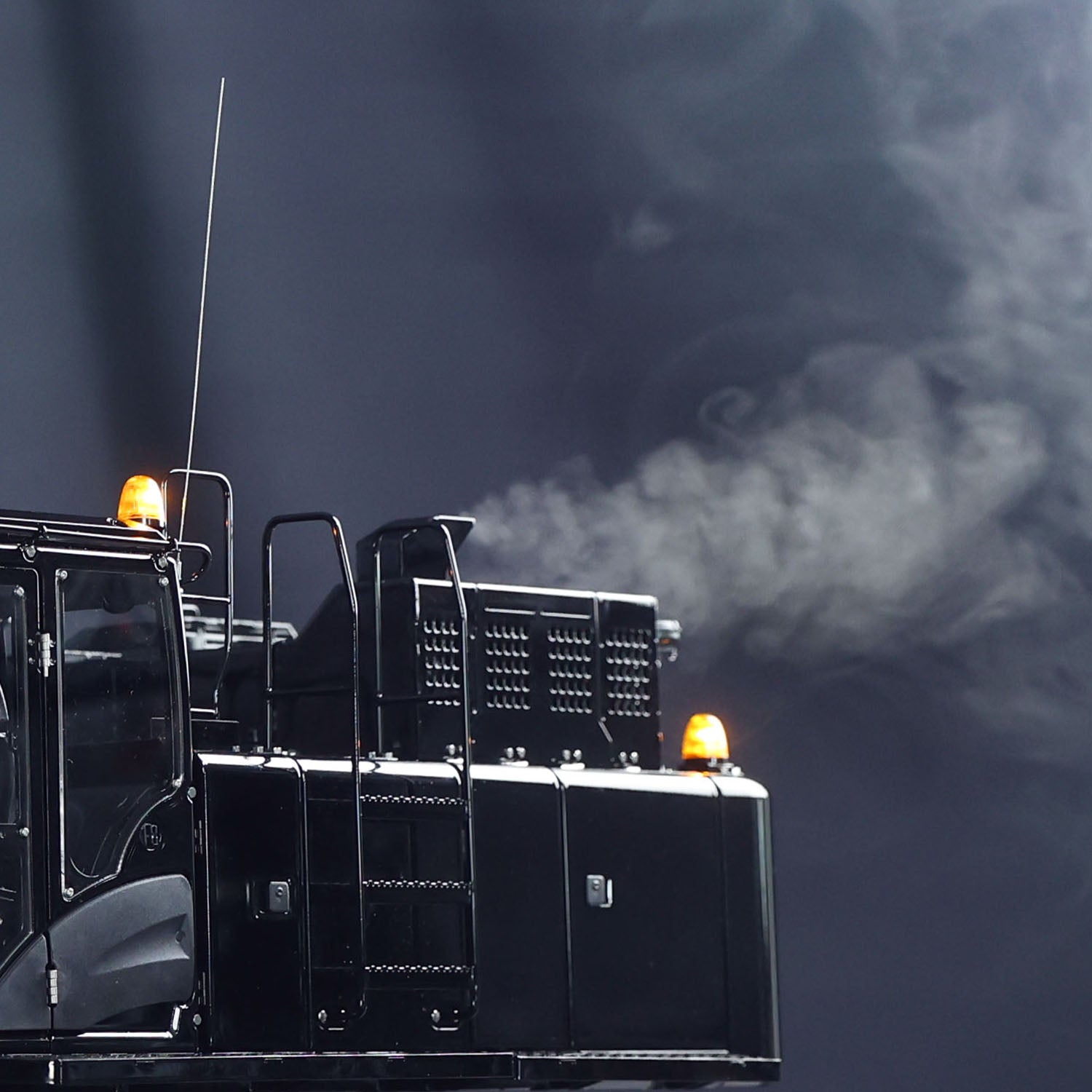

Features 9 functional opening access panels and doors for convenient maintenance and enhanced realism. The complete lighting system includes 7 bright LED lights, 3 warning beacons, and 2 simulated GPS antenna lights. An integrated sound system and realistic smoke unit recreate the sights and sounds of a full-size excavator, delivering a more immersive and true-to-scale operating experience.
5. Powerful All-Terrain Performance

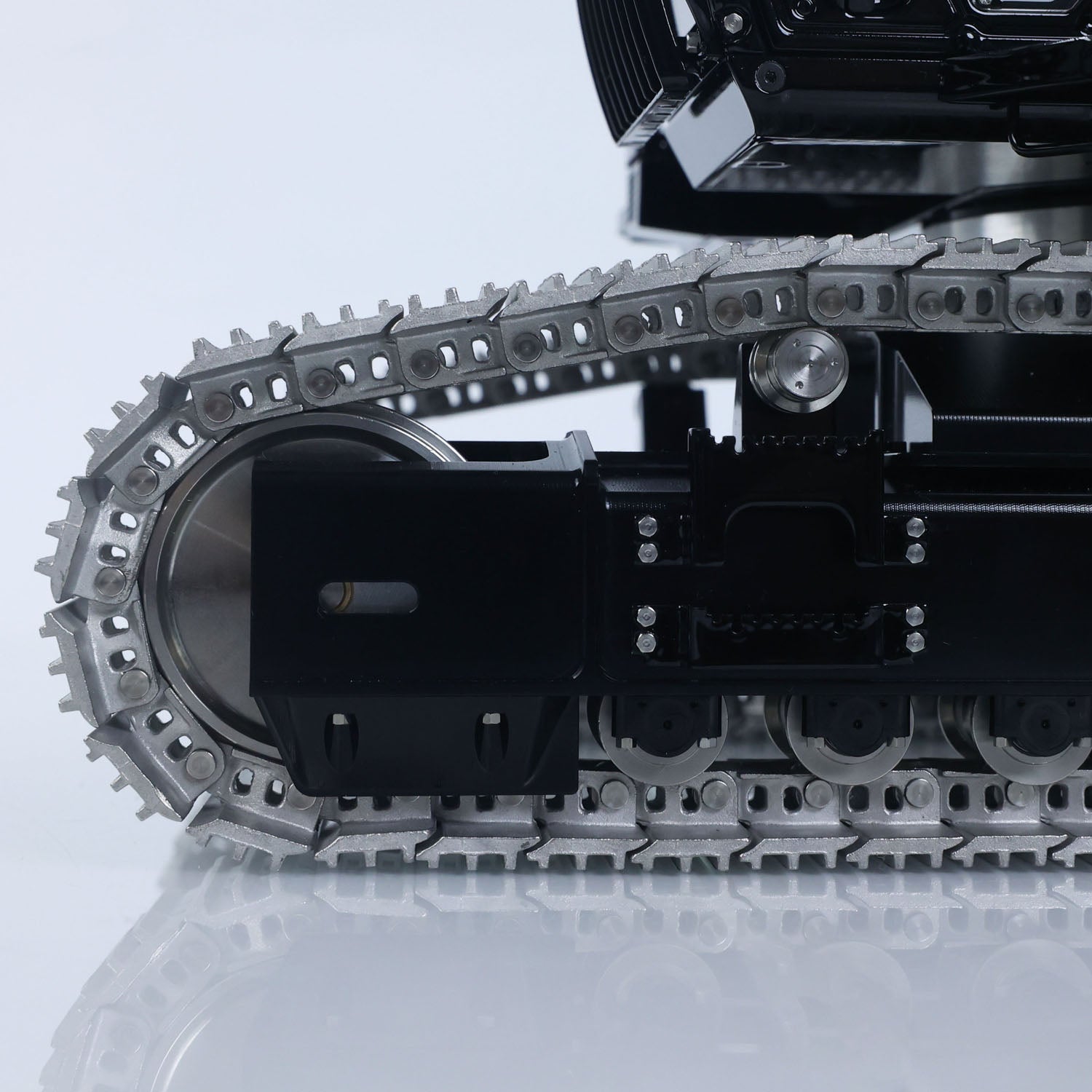

Powered by a high-torque brushless drive motor with a planetary reduction gearbox for smooth operation, high efficiency, low heat generation, and excellent low-speed torque. The all-metal tracks and heavy-duty drive sprockets provide outstanding traction on dirt, sand, gravel, and other challenging terrain. A 6-channel slip ring enables continuous 360 Degree turret rotation, delivering unrestricted operation and an even more realistic construction experience.
