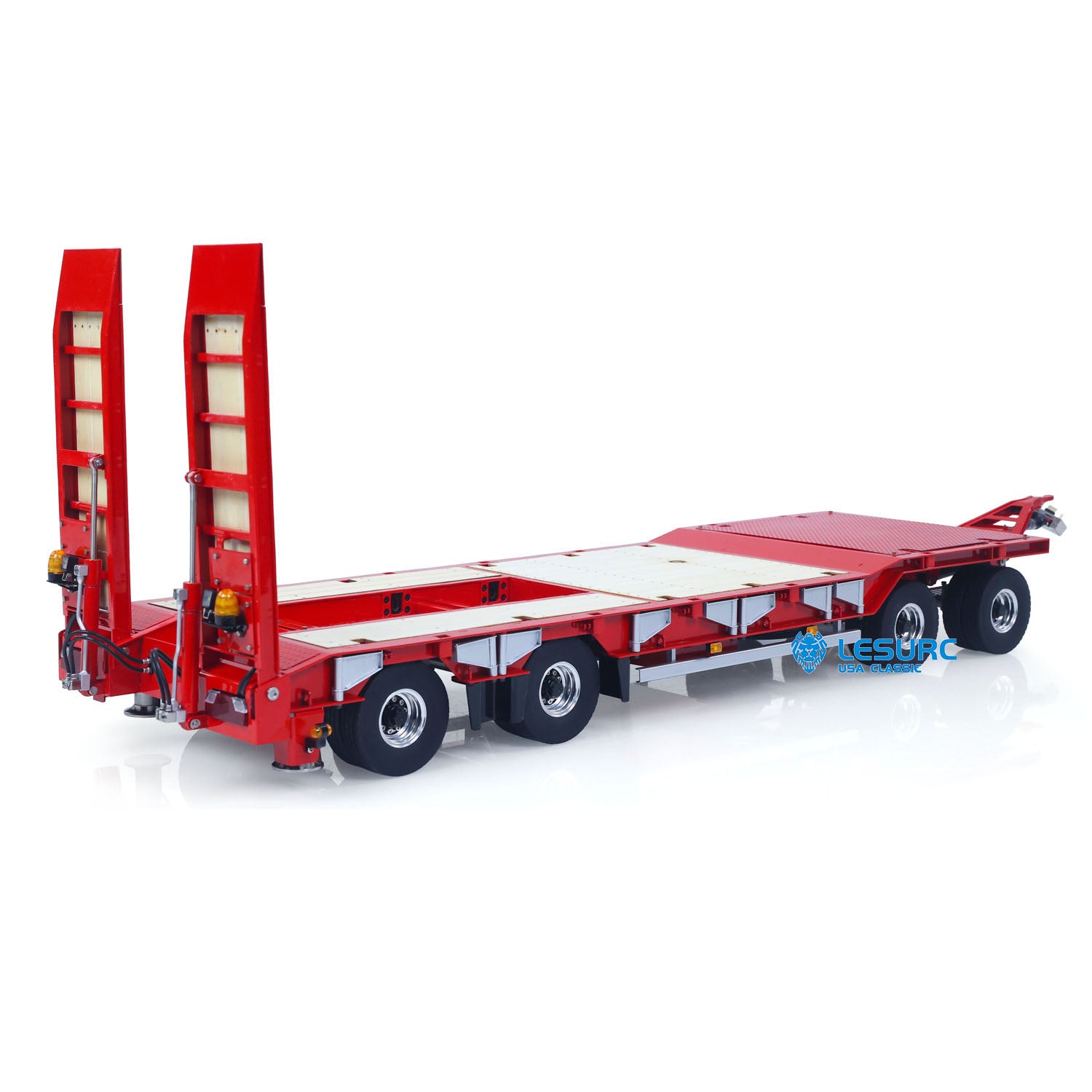

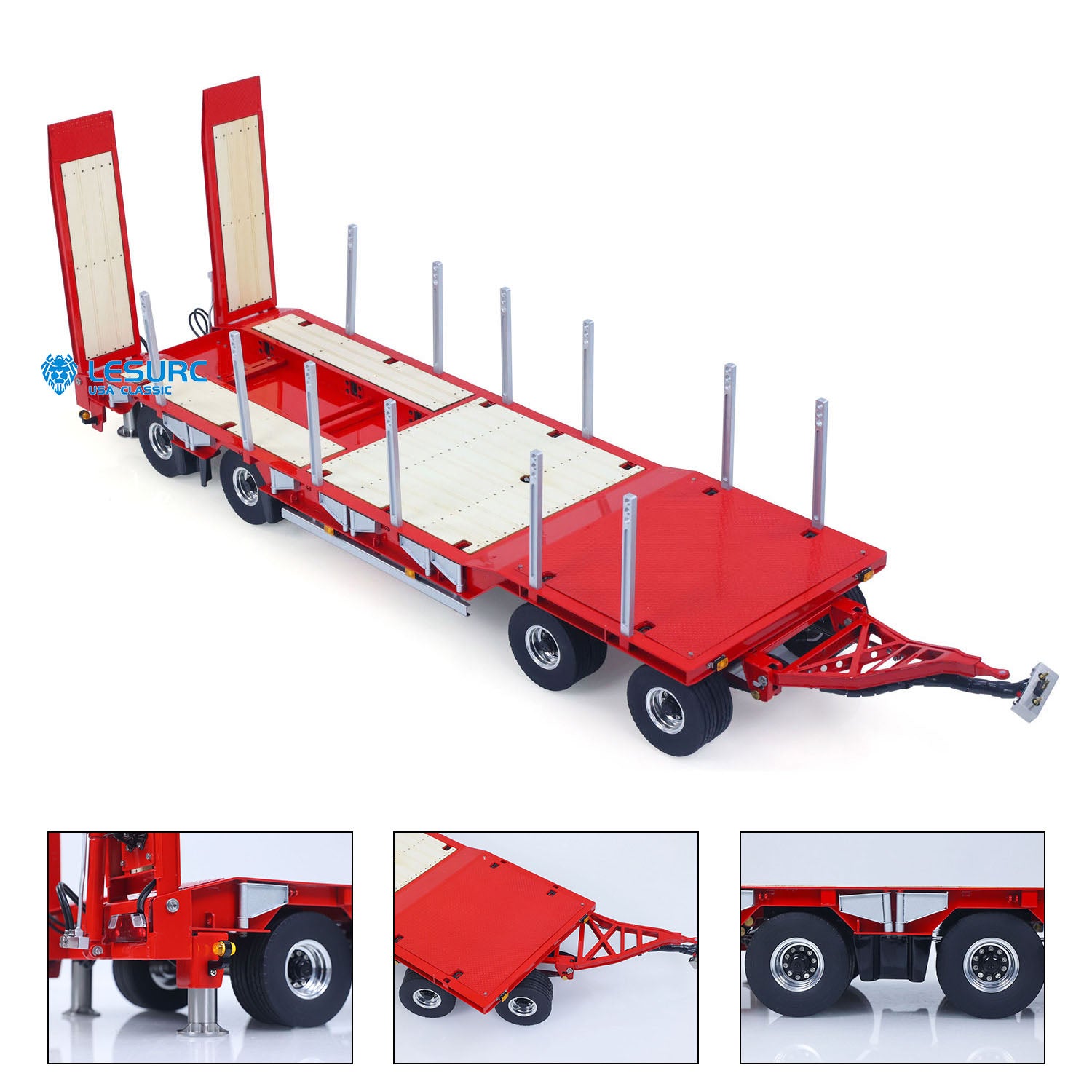

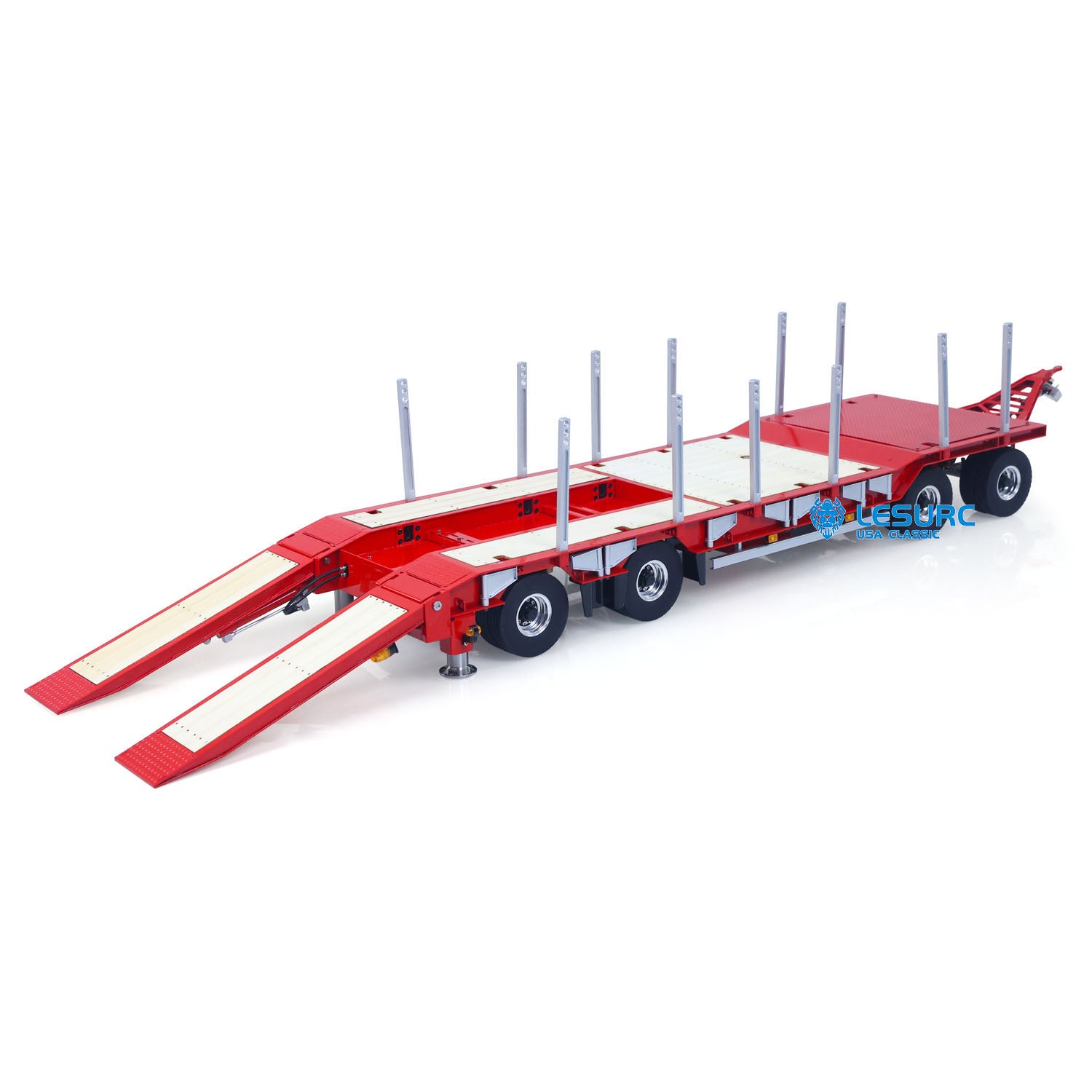

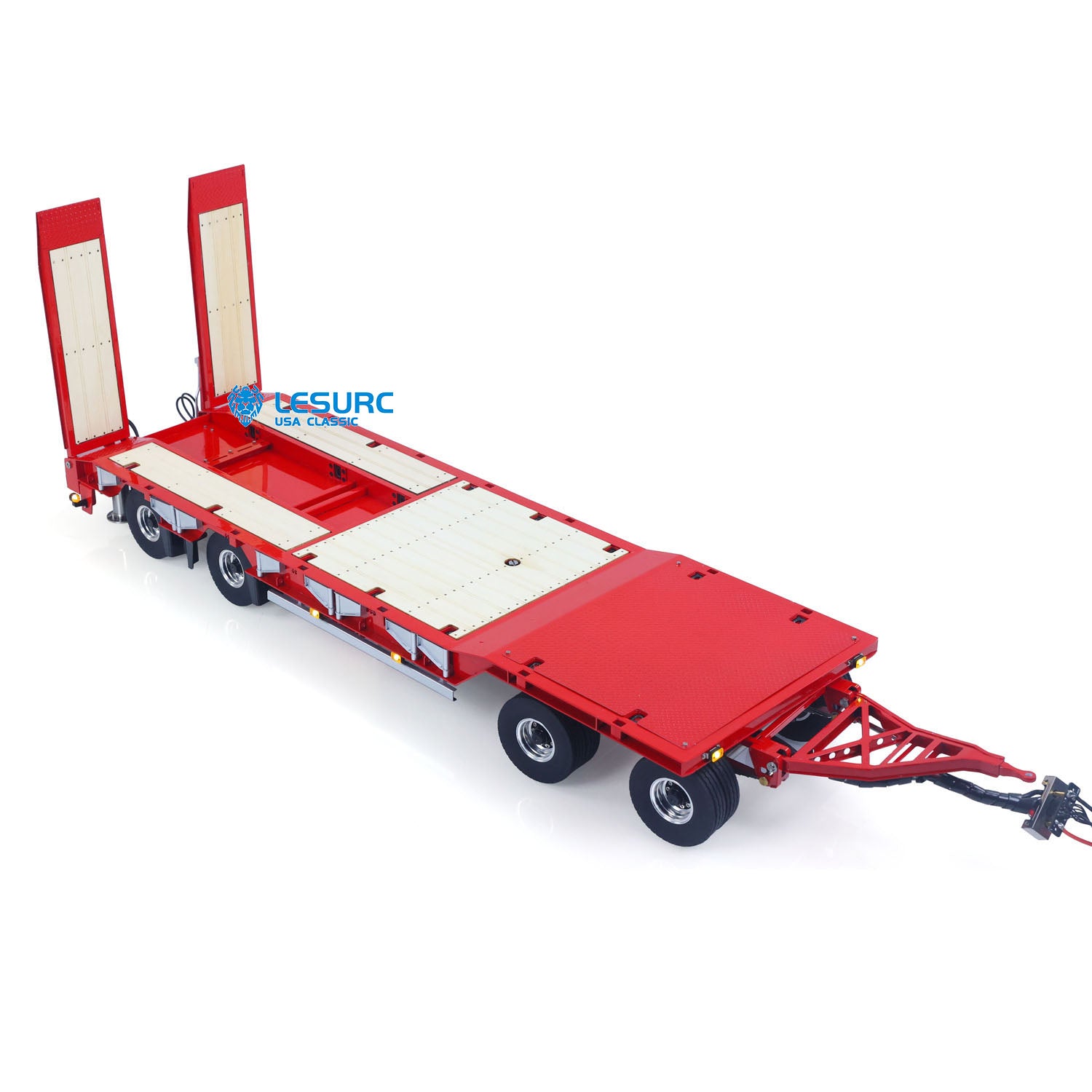

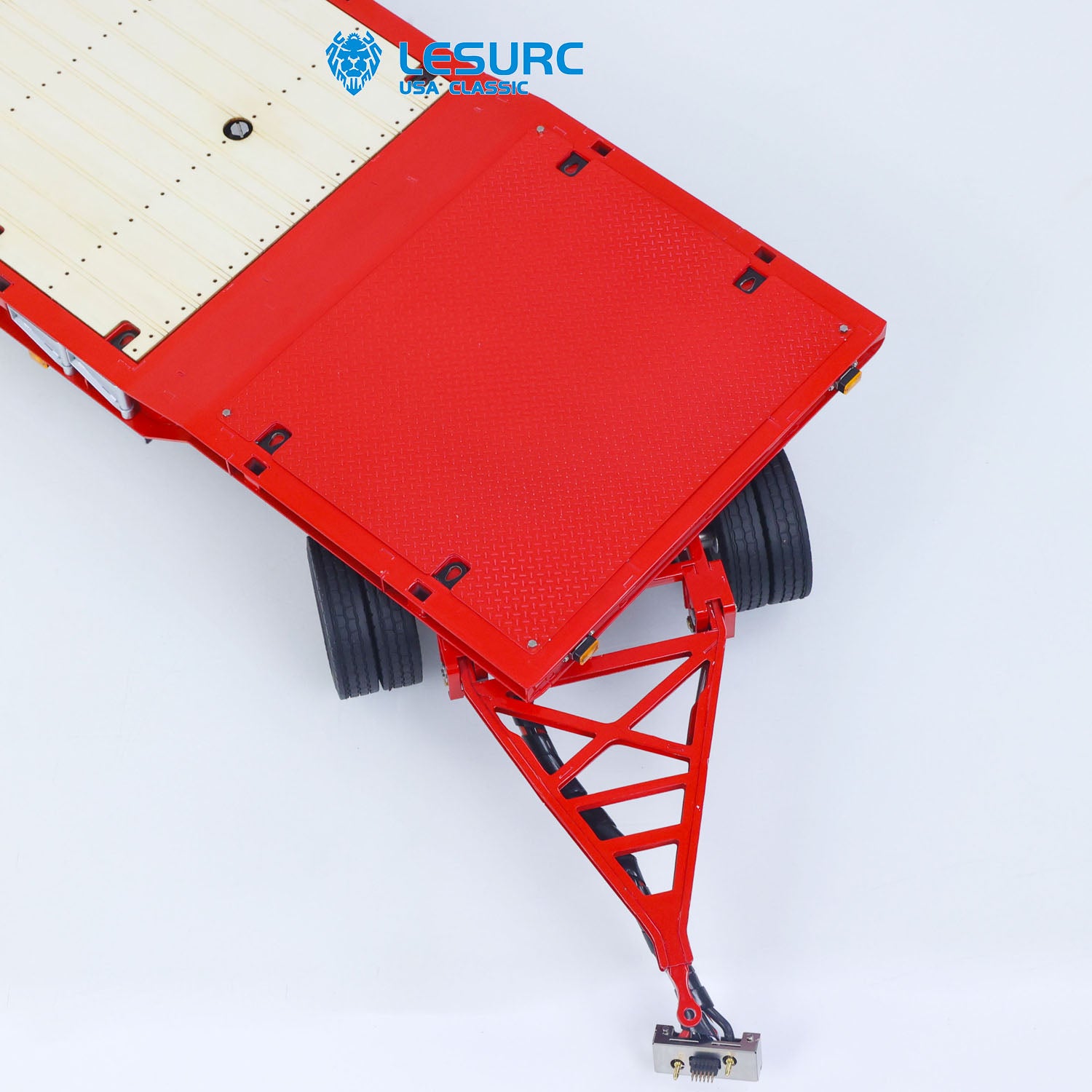

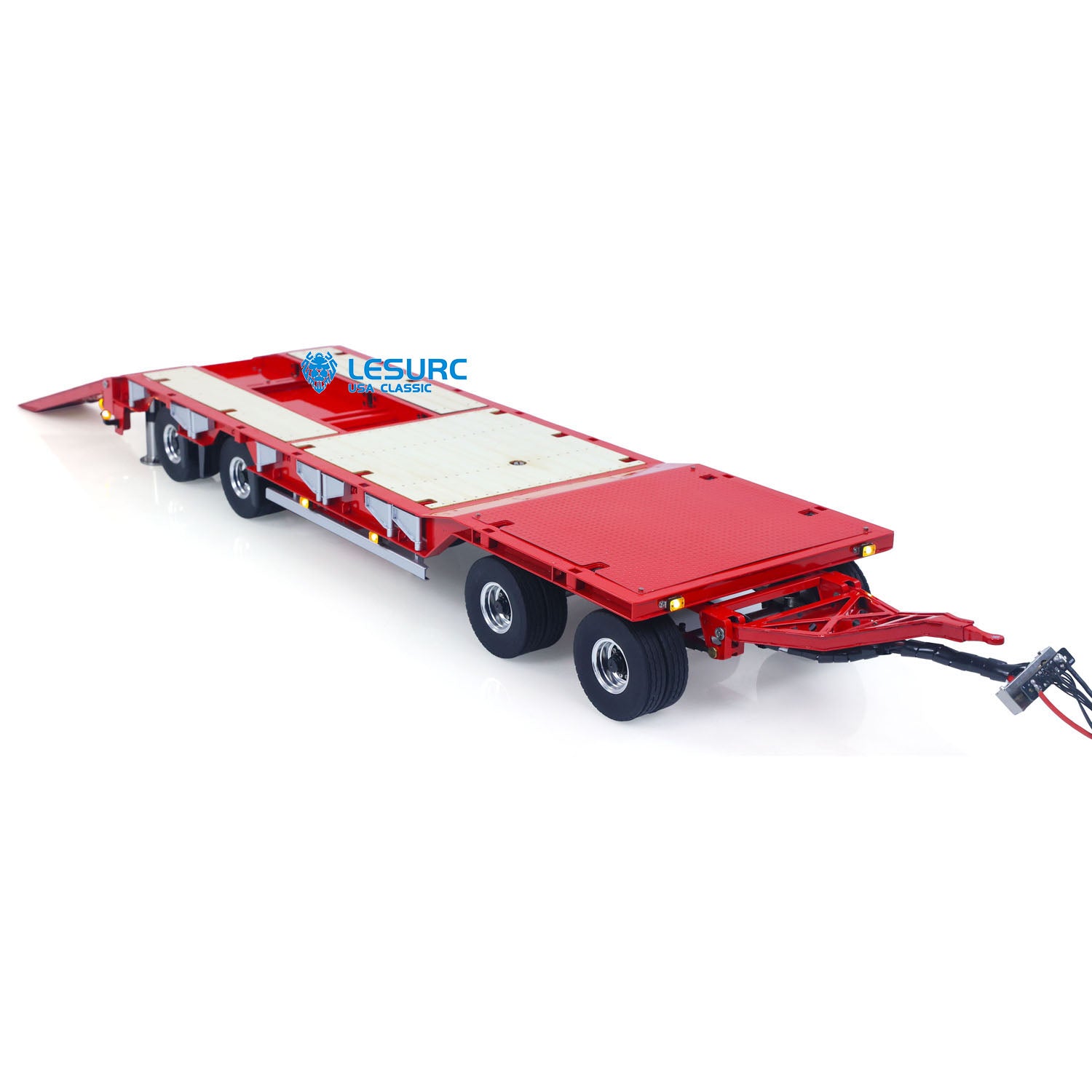

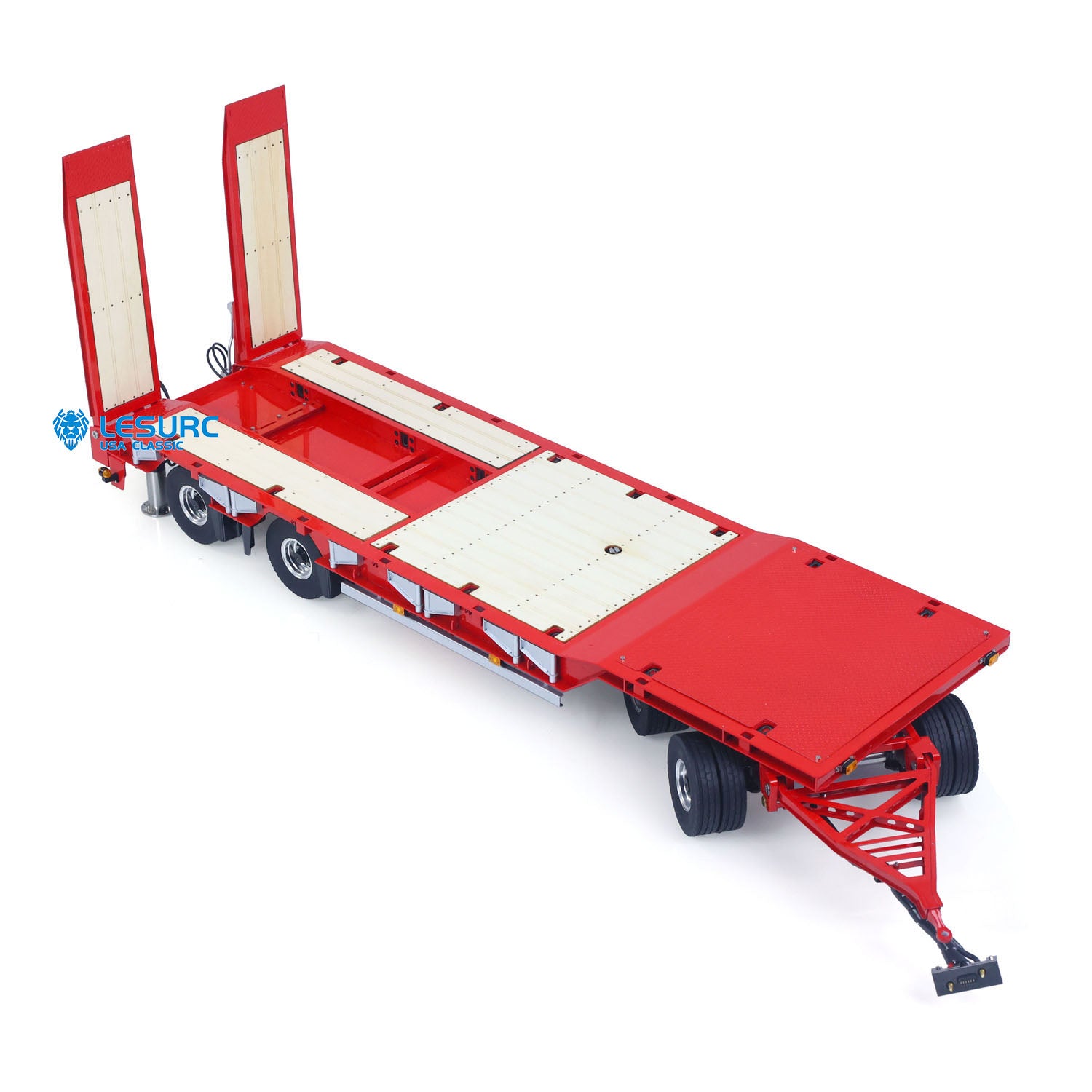

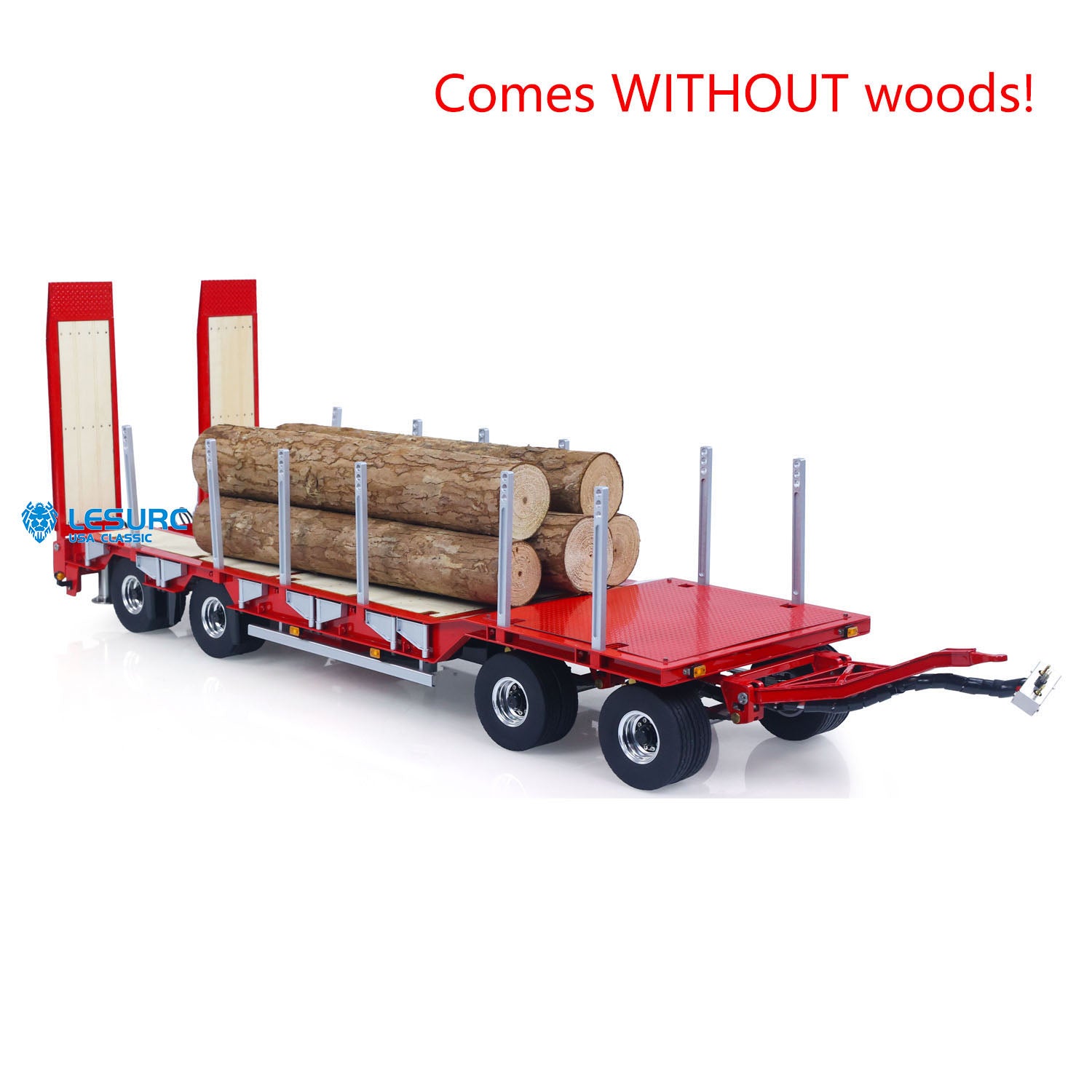

#1/14 LESU Metal Trailer Hydraulic Lifting Tailboard Electric Legs Painted for RC Tractor Truck DIY Radio Controlled Lorry Car
#Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled.
Material: Stainless Steel, Wood, Aluminum Alloy, Rubber
Suitable For: 1/14 RC Tractor Truck Remote Control Dumper Car Construction Vehicles, DIY Model

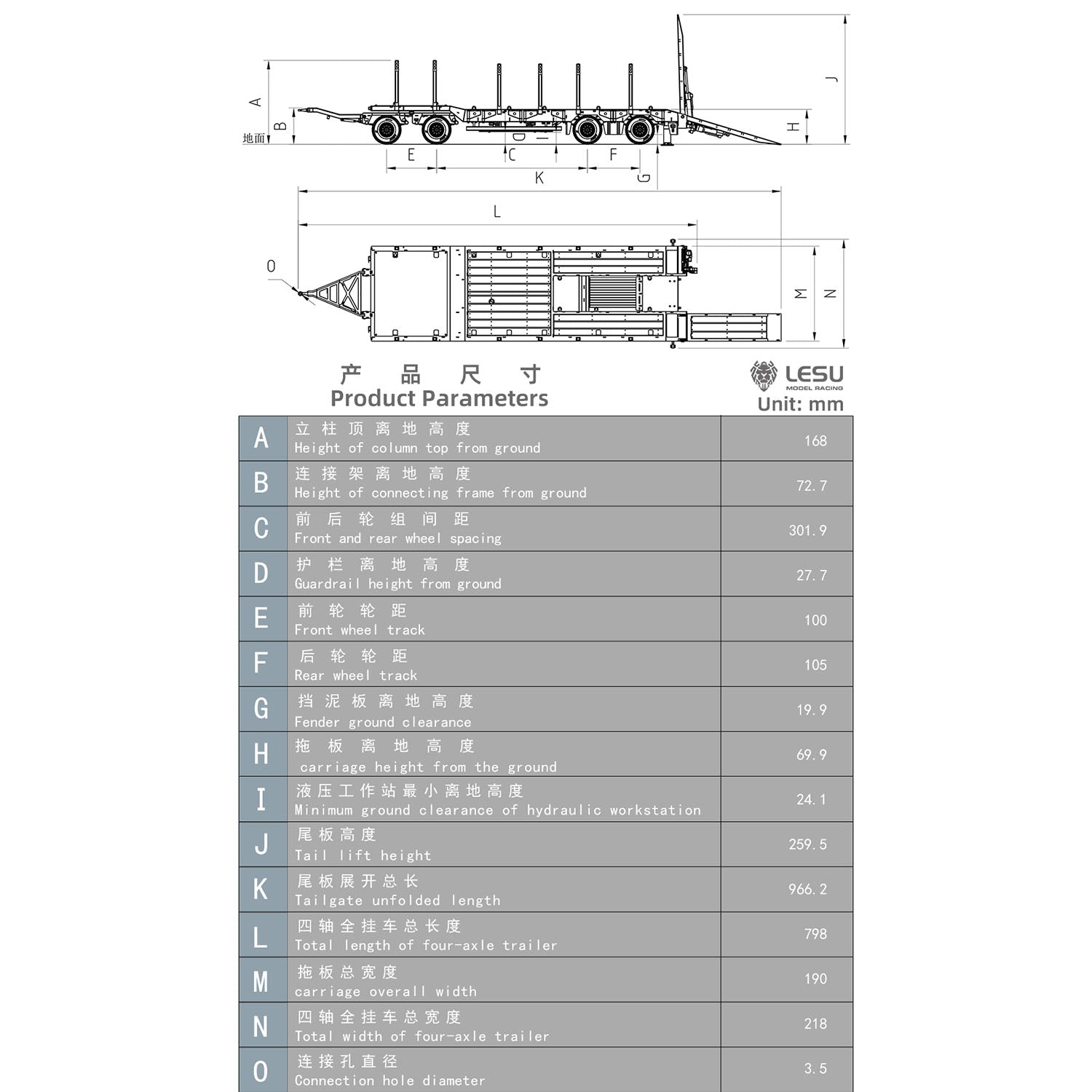

Height from Column Top to Ground: 168MM
Height from Connecting Frame to Ground: 72.7MM
Distance Between Front and Rear Wheel Sets: 301.9MM
Height from Guardrail to Ground: 27.7MM
Front Wheel Track: 100MM
Rear Wheel Track: 105MM
Height from Mudguard to Ground: 19.9MM
Height from Tow Plate to Ground: 69.9MM
Minimum Height from Hydraulic Station to Ground: 24.1MM
Tail Plate Height: 259.5MM
Total Length of Tail Plate When Deployed: 966.2MM
Total Length of 4-Axle Full Trailer: 798MM
Total Width of Tow Plate: 190MM
Total Width of 4-Axle Full Trailer: 218MM
Diameter of Connecting Hole: 3.5MM
ID: LS-A0049-RTR-R

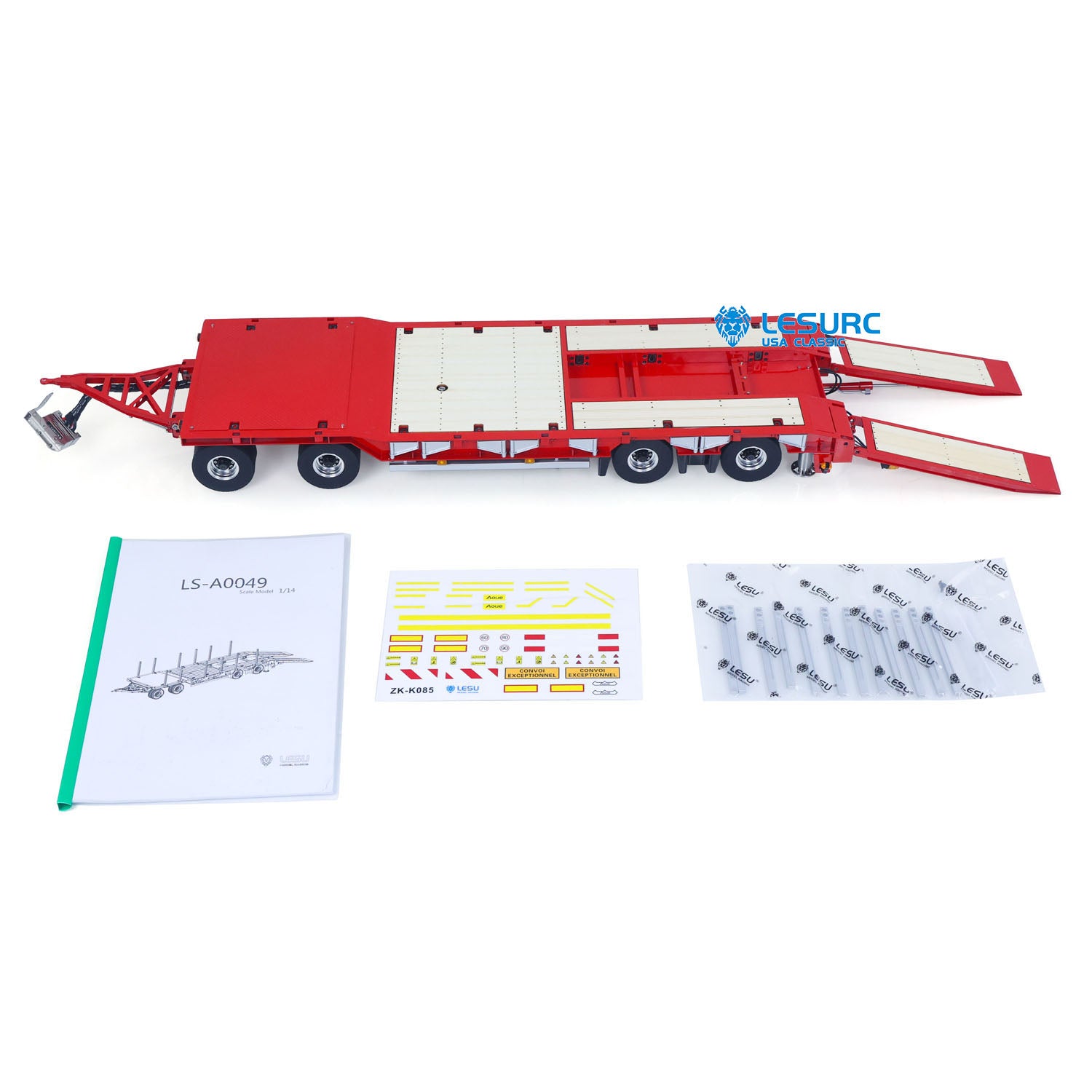

#The Package Includes:
1PC Metal Trailer Model comes with Hydraulic Lifting Tailboard
Hydraulic System with Pump, 2PCS 1CH Valve, Overflow Valve, ESC, Cylinder, Oil Tank
Some Lights (Taillights, width lights and rotating warning lights, it does not include light controller)
#The Package Does Not Include:
Hydraulic Oil
Battery
Radio System
Light Controller
#Features:

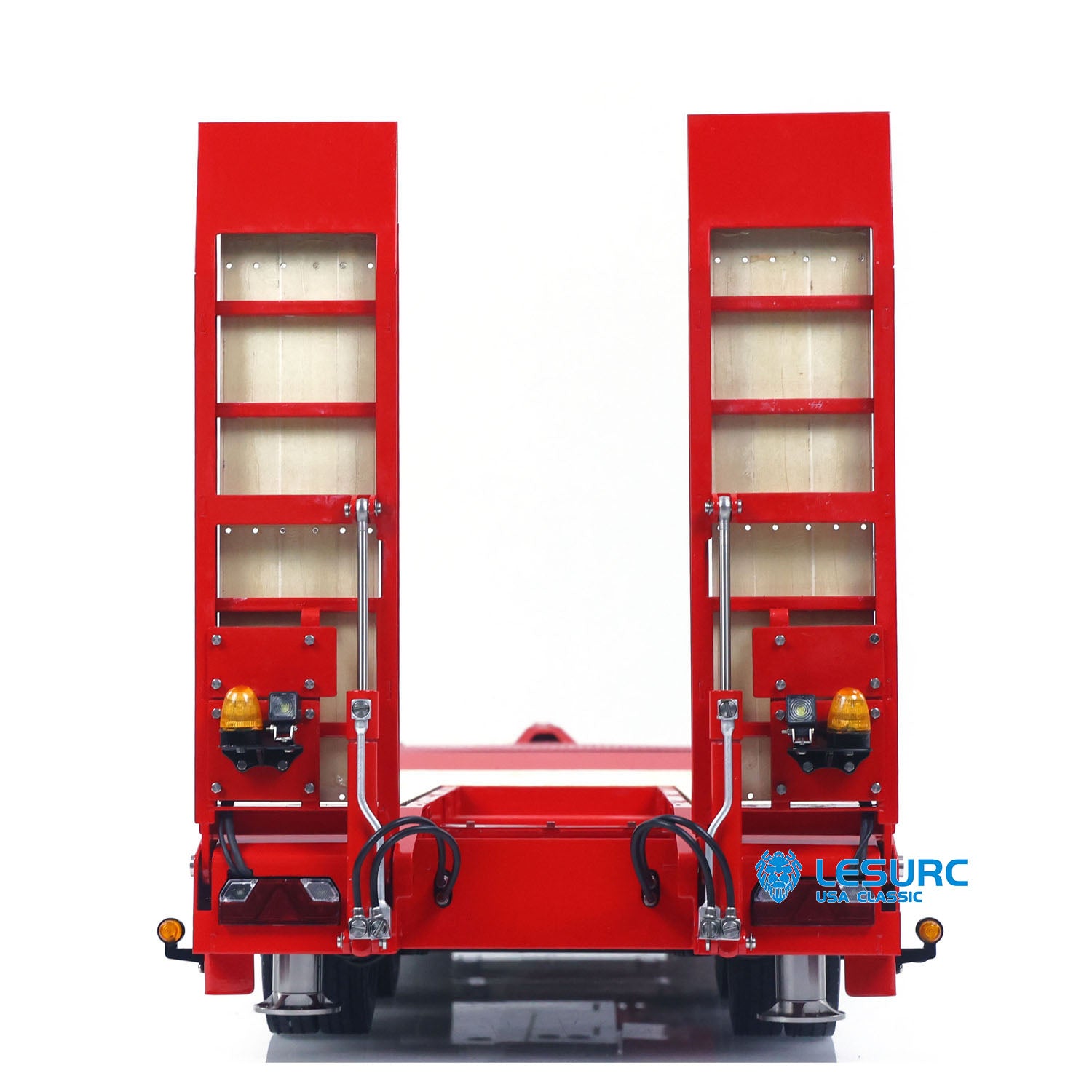

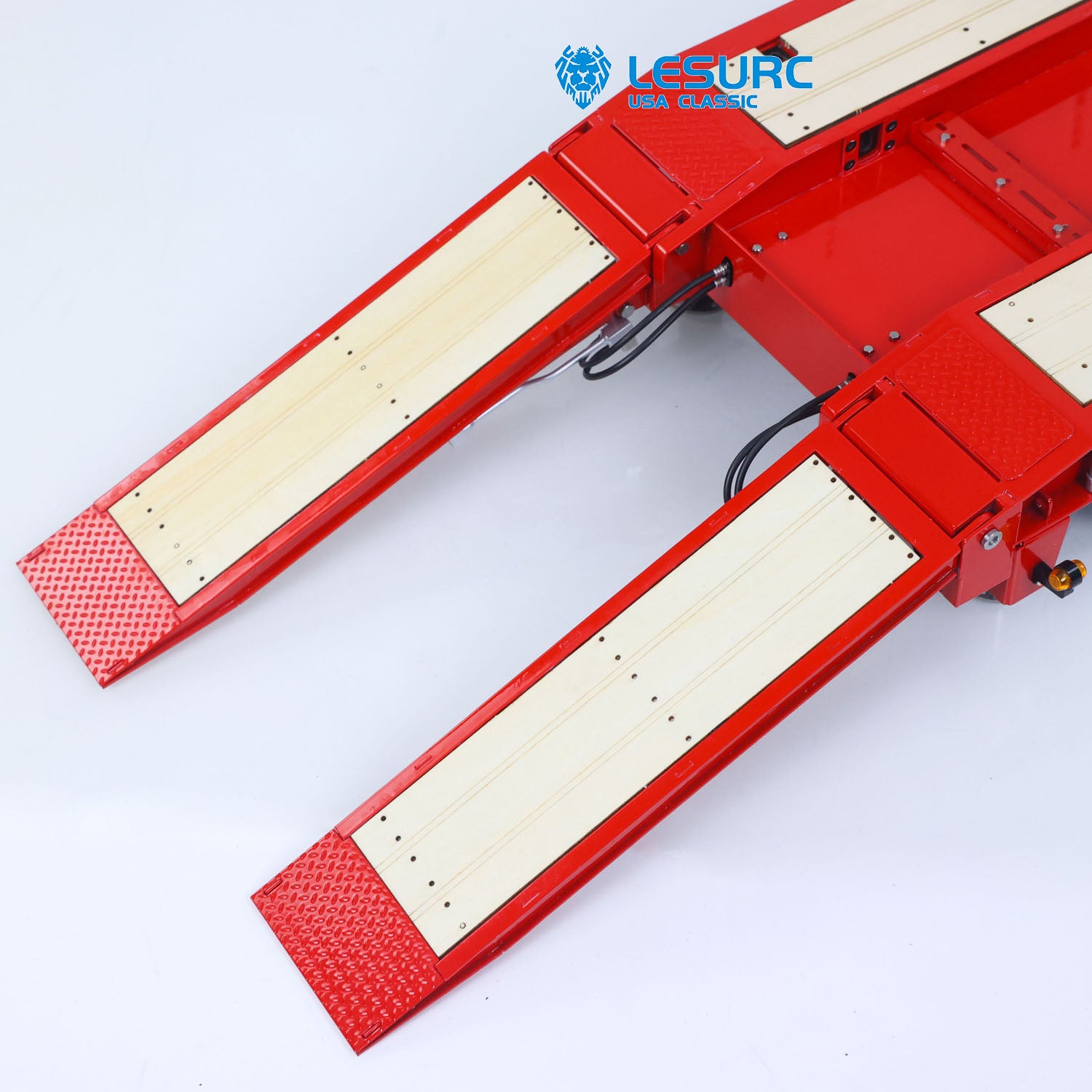

1. Equipped with YZ-0001 hydraulic pump, brushless ESC, relief valve, two Y-1537 1-way directional valves, 4 hydraulic cylinders and matching oil tank; 1-way valve for tail plate hydraulic lifting, the other for hydraulic support legs.

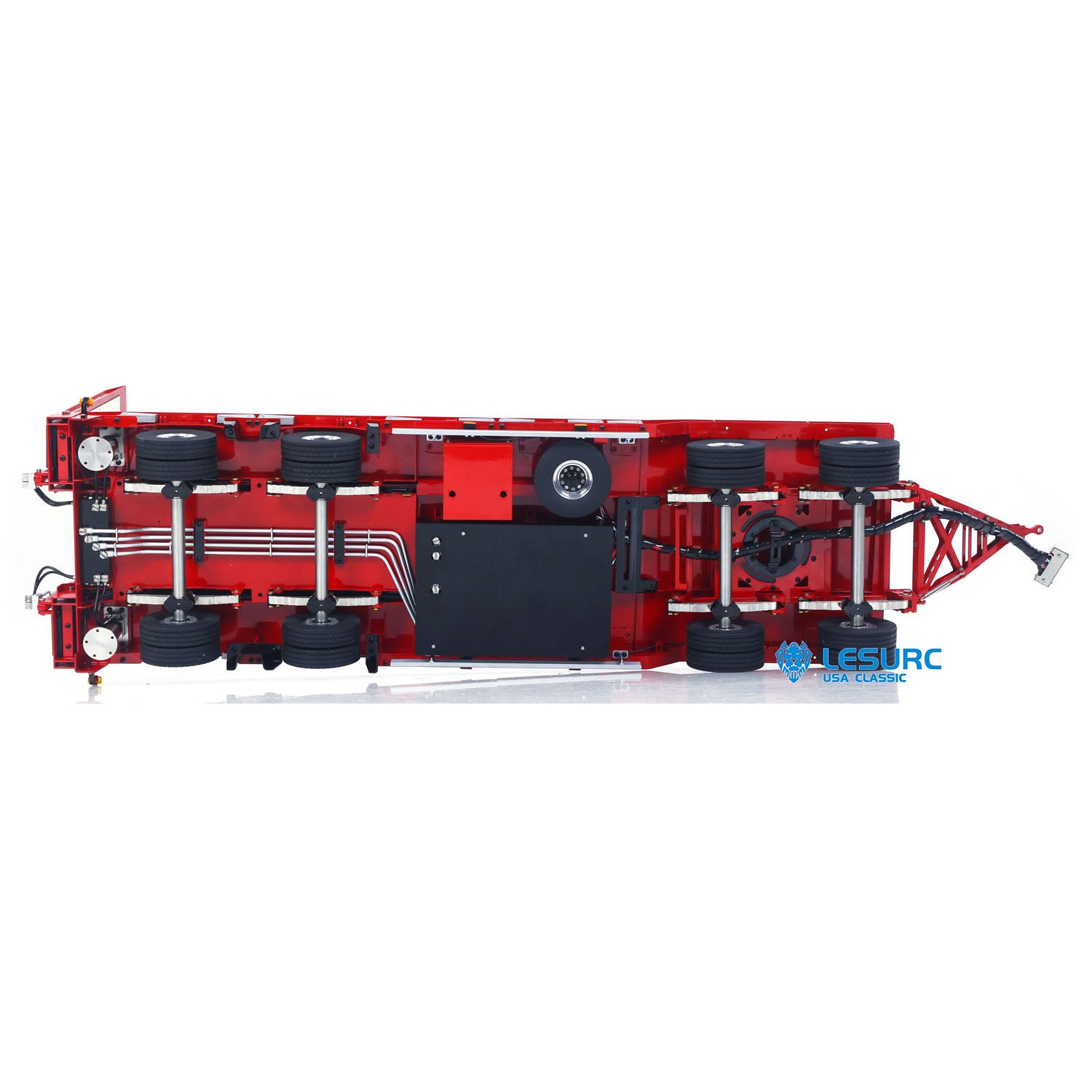

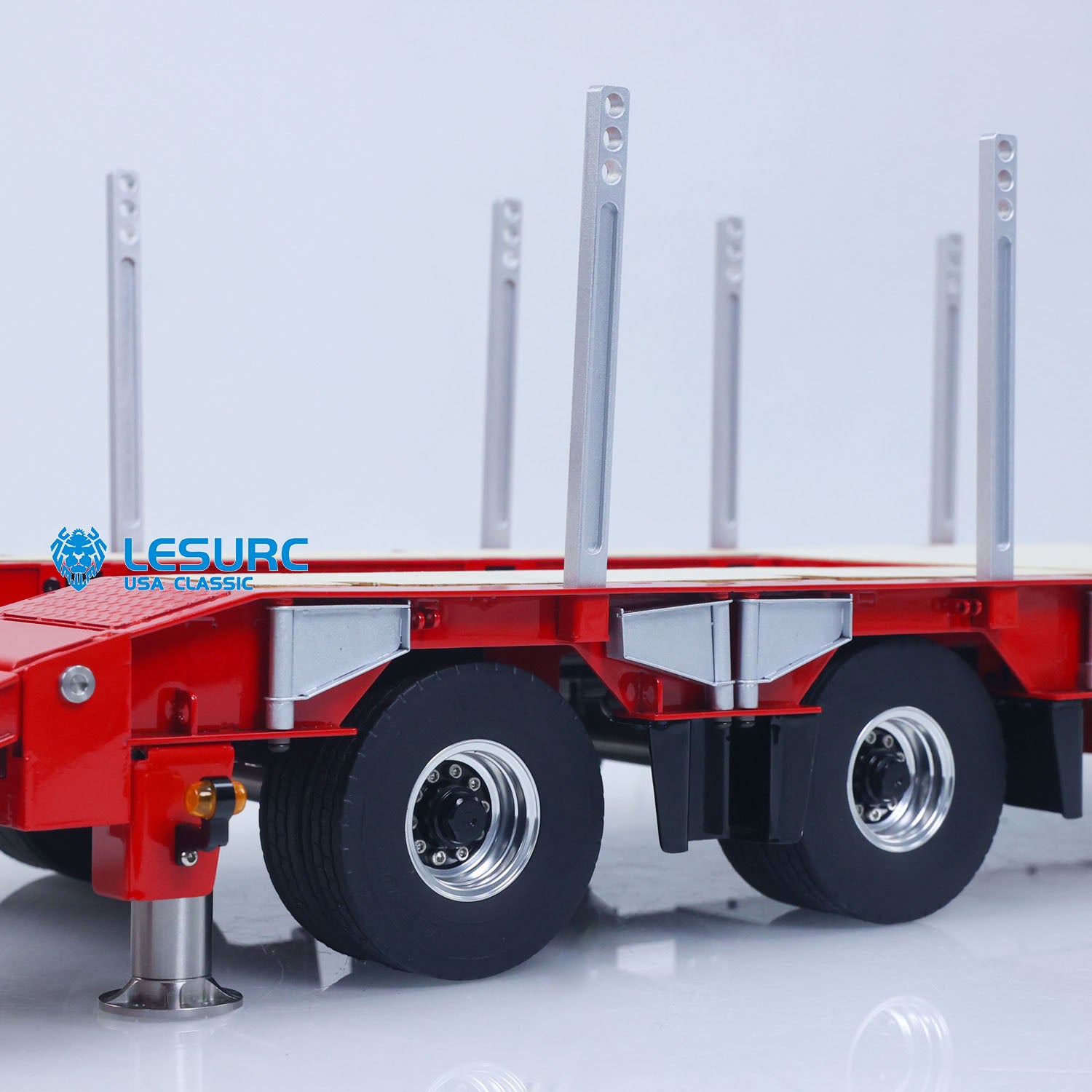

2. 4-axle unpowered axle with CNC precision hubs and high-quality rubber tires; axle suspension with simulated leaf spring suspension.

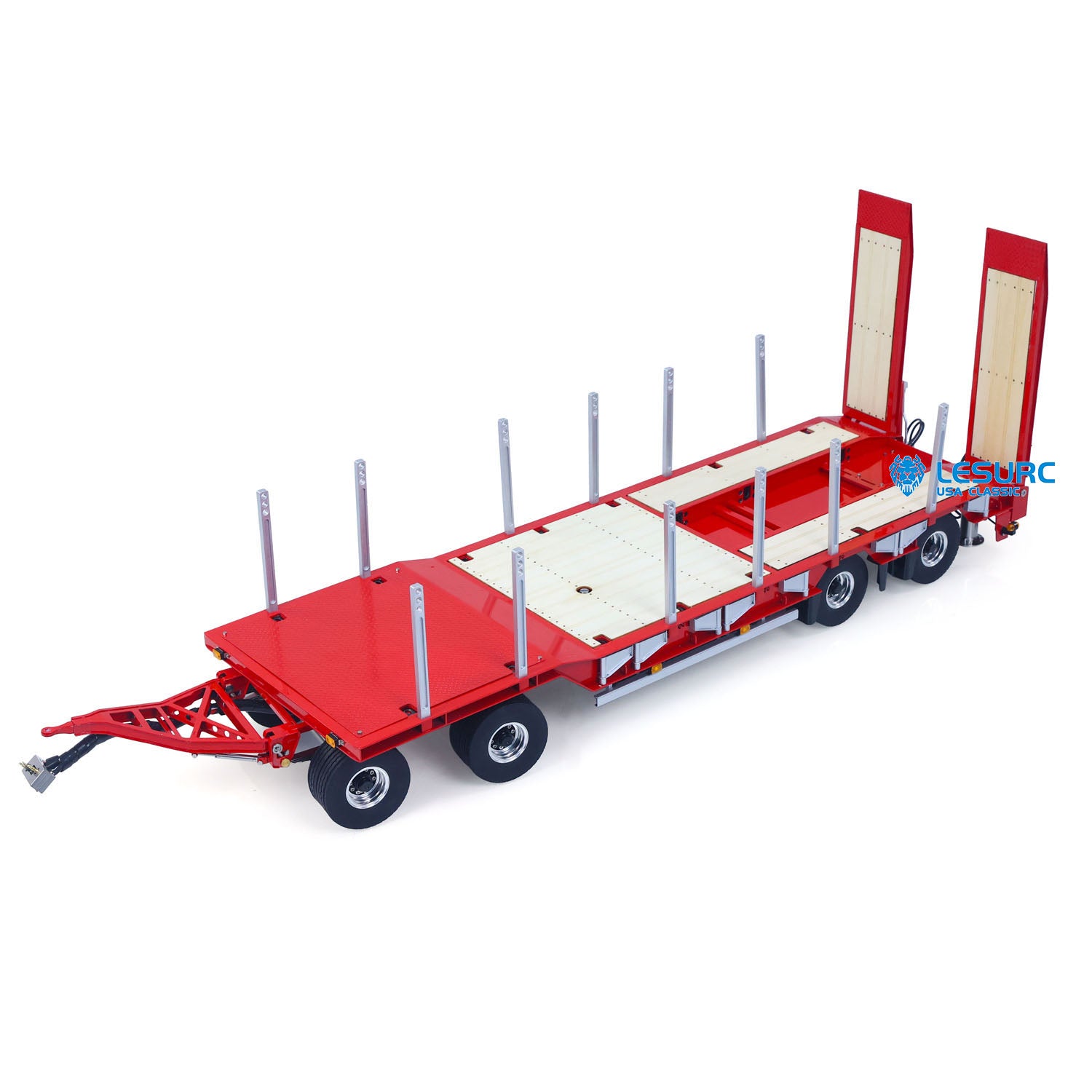

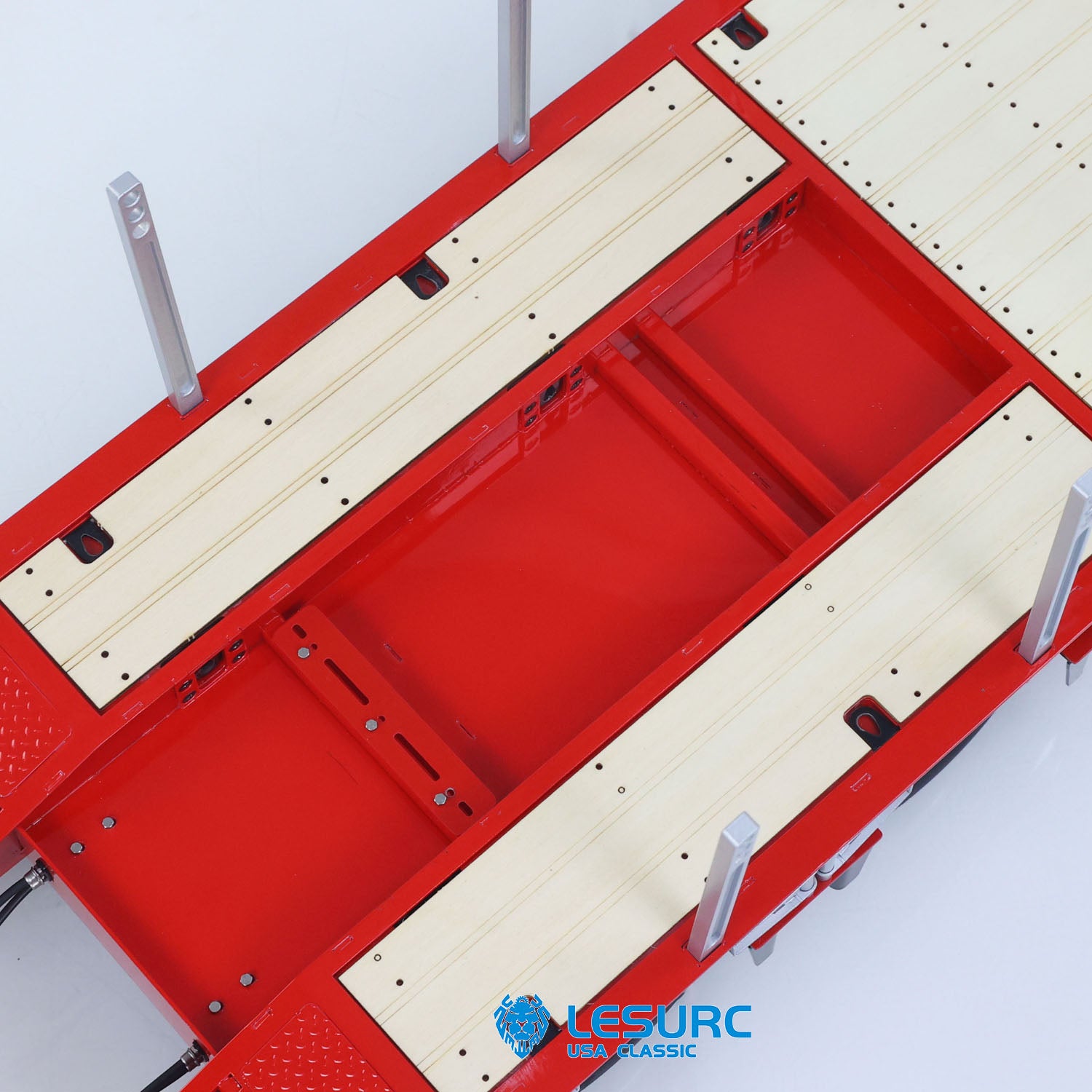

3. Manual widening brackets on both sides for loading larger construction machinery; retains wooden, highly simulated real vehicle pedals, simulated wire frame fixation, simulated toolboxes on both sides, stainless steel side rails, full of details.

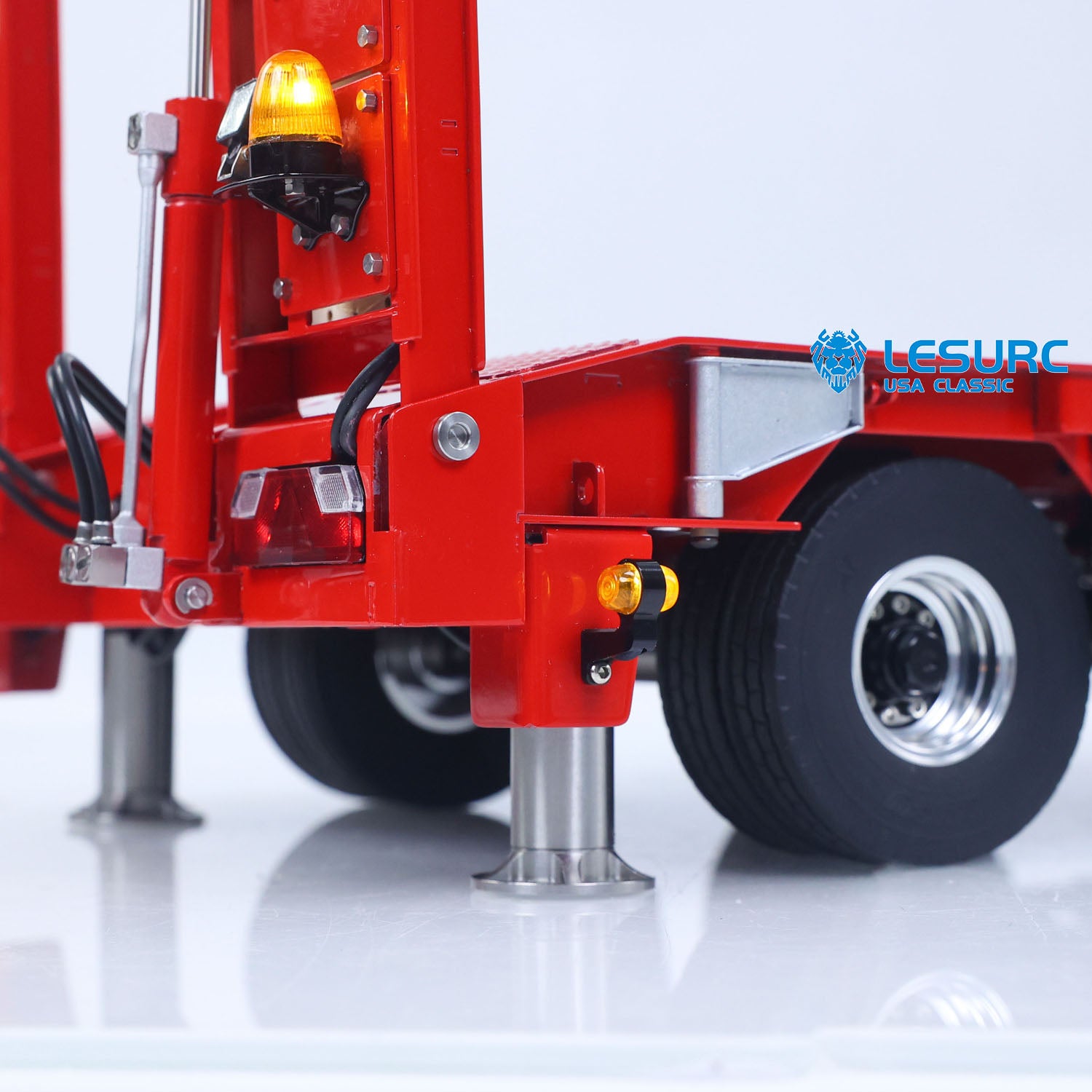

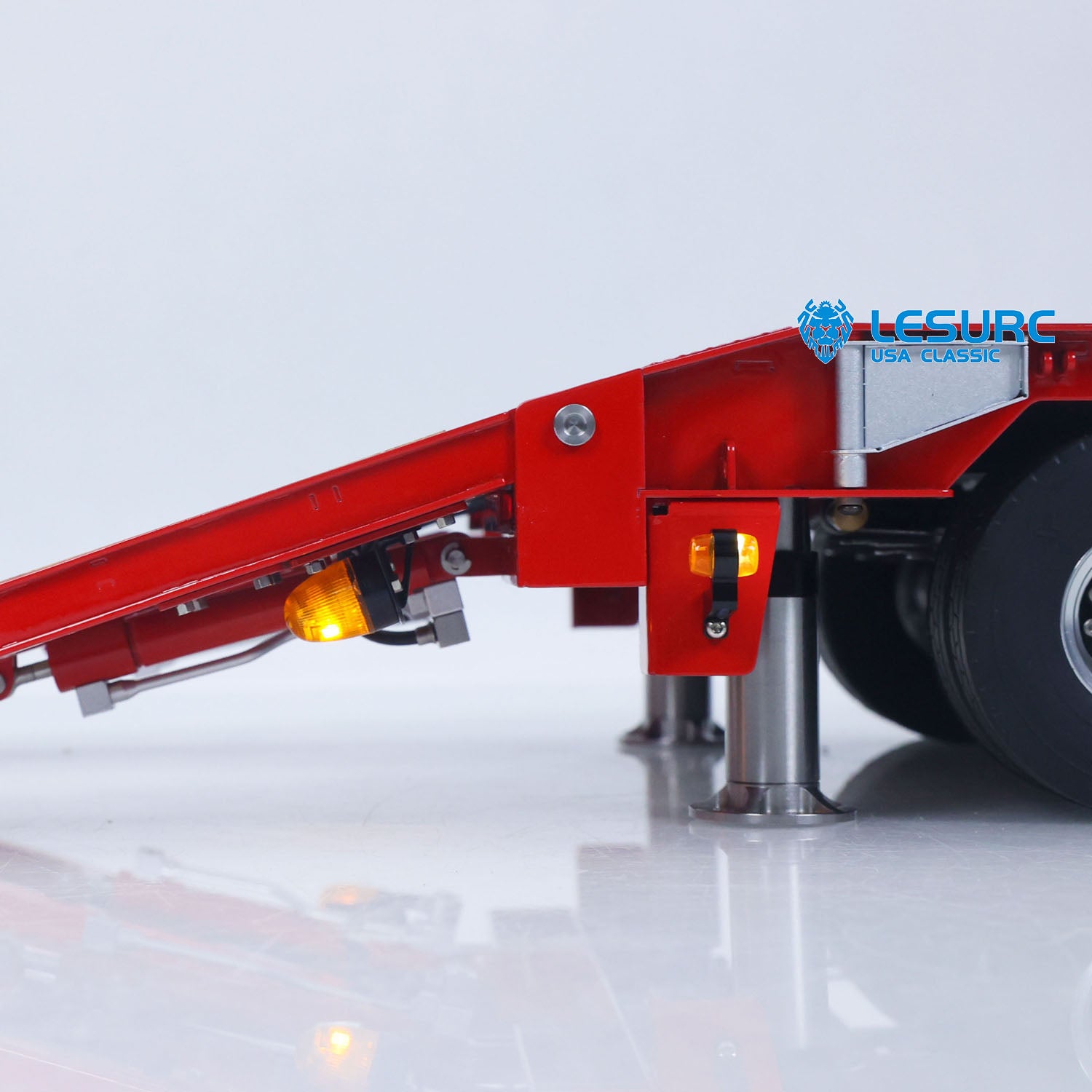

4. Tow plate configured with taillights, width lights and rotating warning lights, without light controller (to be purchased separately).

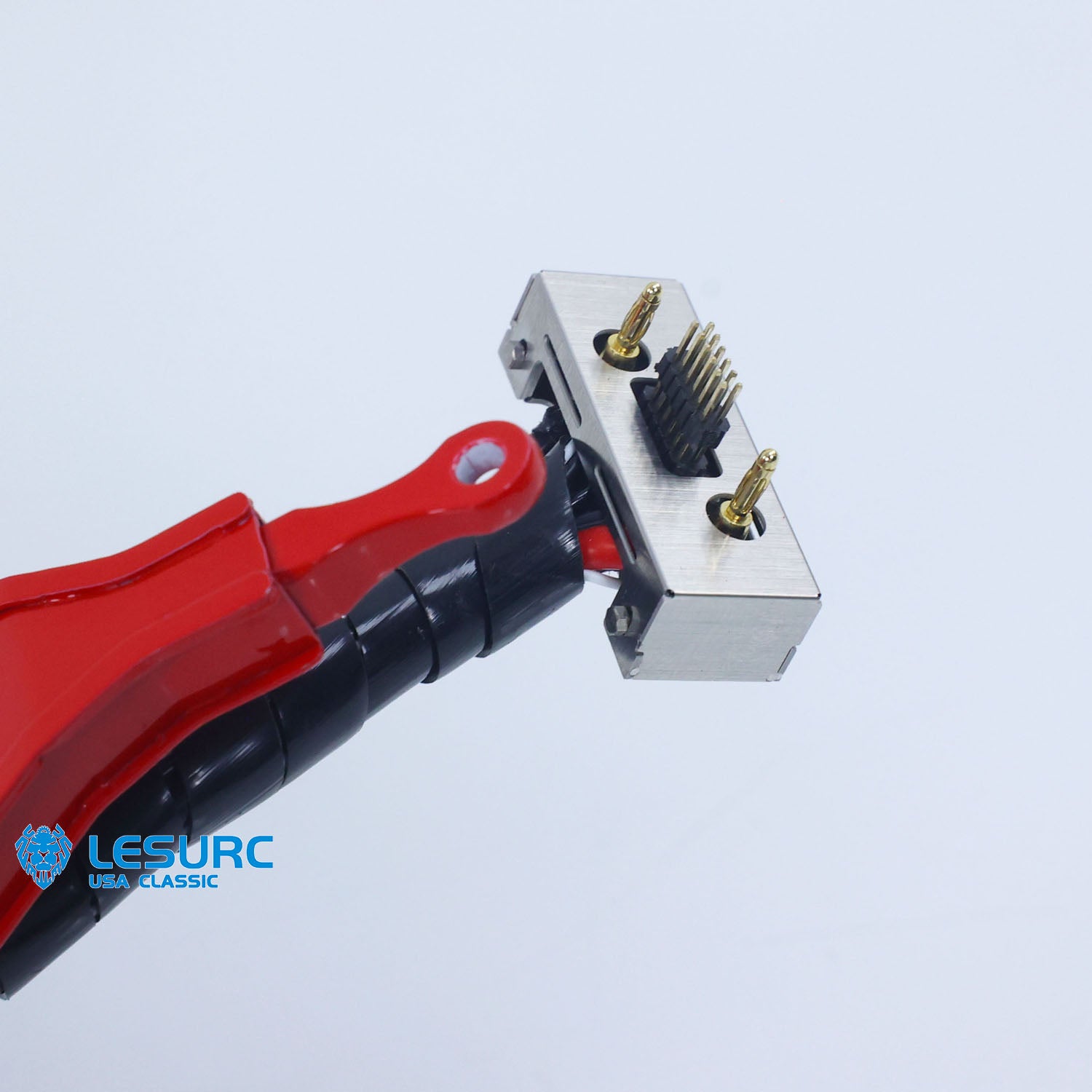

5. Tow plate comes standard with G-6268 integrated power connector.
